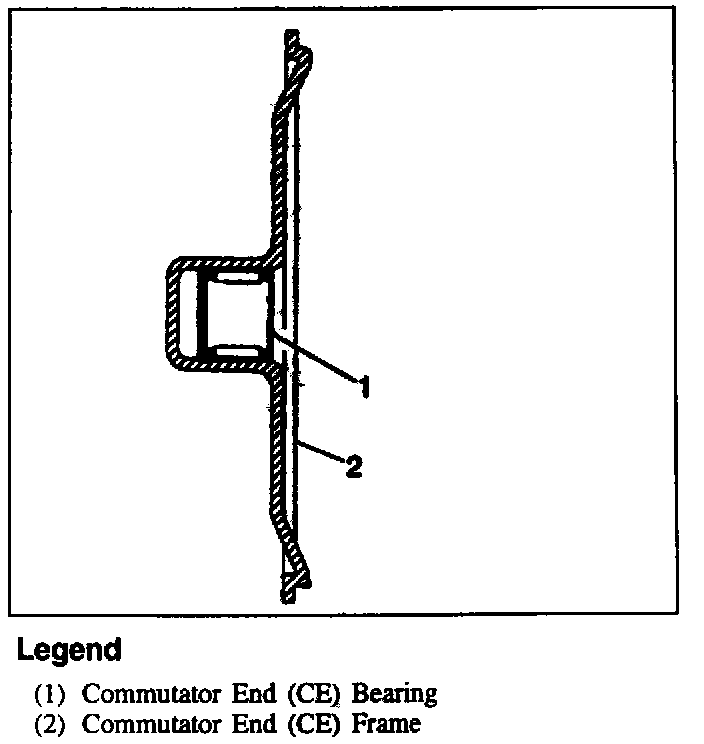

Commutator End (CE) Frame and Bearing

Commutator End (CE) Frame And Bearing:

INSPECT
Be sure that the Commutator End (CE) bearing has not spun in the CE frame. If the CE roller type bearing has spun, replace the CE frame and bearing. Do not lubricate the CE bearing. If the CE roller type bearing is dry or damaged, replace the CE bearing. Install the new bearing into the CE frame. Refer to "Specifications".
