A/T - Hole in Shifter Boot
File In Section: 07 - Transmission/TransaxleBulletin No.: 02-07-49-001
Date: May, 2002
TECHNICAL
Subject:
Hole in Shifter Boot
(Replace Shifter Boot)
Models:
1997-2002 Buick Regal with Floor Shift
Condition
Some customers may comment that there is a hole in the shifter boot.
Correction
A new shifter boot has been released for service to correct this condition. This new shifter boot has an added patch to prevent premature wear. Replace the shifter boot using the procedure and part number listed below.
Important:
Do not replace Automatic Transmission Control Assembly, P/N 12568203, when the shifter boot requires replacement. The shifter boot can now be replaced separately from the control assembly.
1. Remove the console front trim plate.
1.1. Start at the front and working back, pull the console front trim plate upward in order to release the tabs from the retainers.
1.2. Disconnect the electrical connectors from the traction control switch, if equipped.
1.3. Remove the console front trim plate from the vehicle.
2. Remove the shift knob.
3. Release the four clips securing the indicator plate to the shifter assembly.
4. Remove the indicator plate and the boot.
5. Install the indicator plate and the boot. Secure the indicator plate with the four clips.
6. Install the shift knob.
7. Install the console front trim plate.
7.1. Connect the electrical connectors to the traction control switch.
7.2. Position the console front trim plate tabs to the retainers in the console.
7.3. Install the console front trim plate, pressing down until the tabs are fully seated.

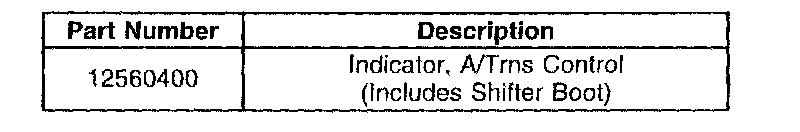

Parts Information
Parts are available May 28, 2002 from GMSPO

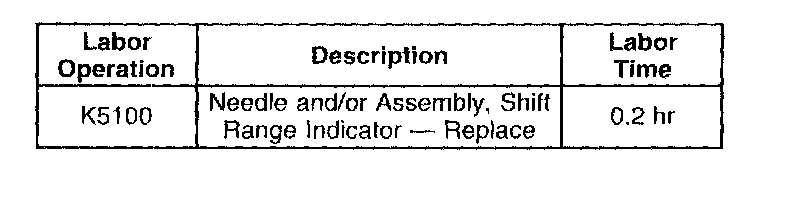

Warranty Information
For vehicles repaired under warranty, use the table.
