Input Clutch and Third Clutch Assemble

^ Tools Required:
- J37361 Input Clutch Inner Piston Seal Protector
- J 37362 Third Clutch Inner Piston Seal Protector
- J23327 Clutch Spring Compressor J25018-A Adaptor
- J28585 Snap Ring Pliers
- Or Equivalents

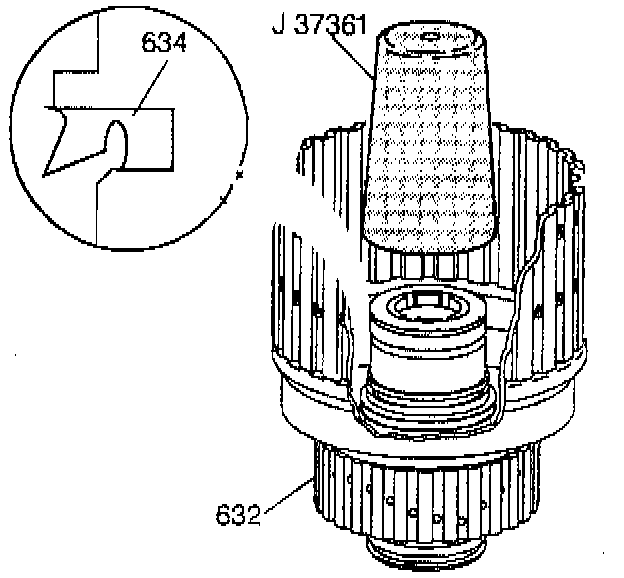

1. Use transmission fluid in order to lubricate the new inner seal (634) for the input clutch piston.
2. Use J 37361 in order to install the new seal.

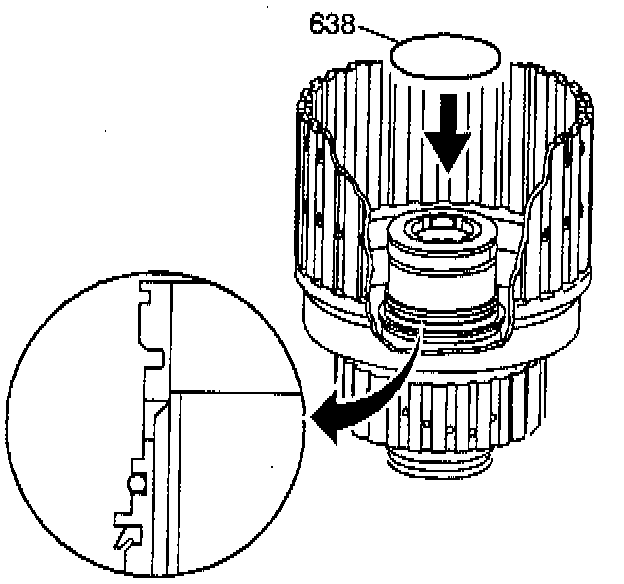

3. Insert a new O-ring seal (638) in the third clutch housing.

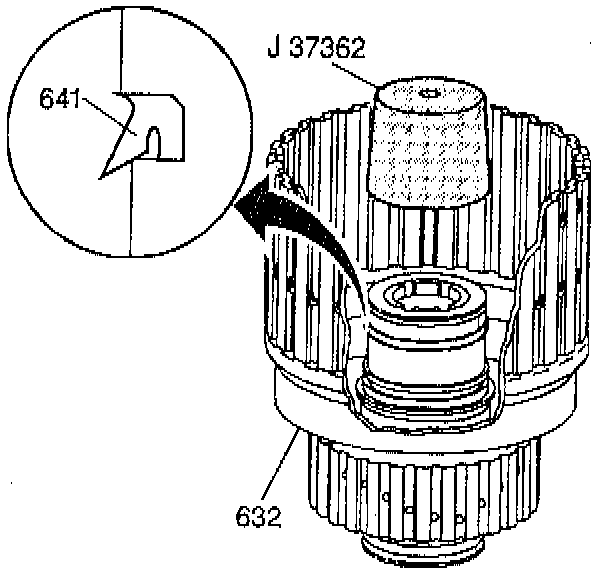

4. Use transmission fluid in order to lubricate the new inner seal (641) for the third clutch piston.
5. Use J 37362 in order to install the seal.

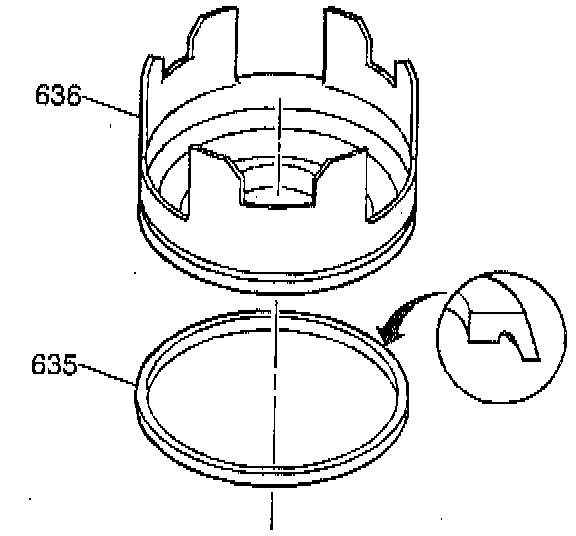

6. Use transmission fluid in order to lubricate the new outer seal (635) for the input clutch piston.
7. Insert the new seal onto the input clutch piston assembly (636).

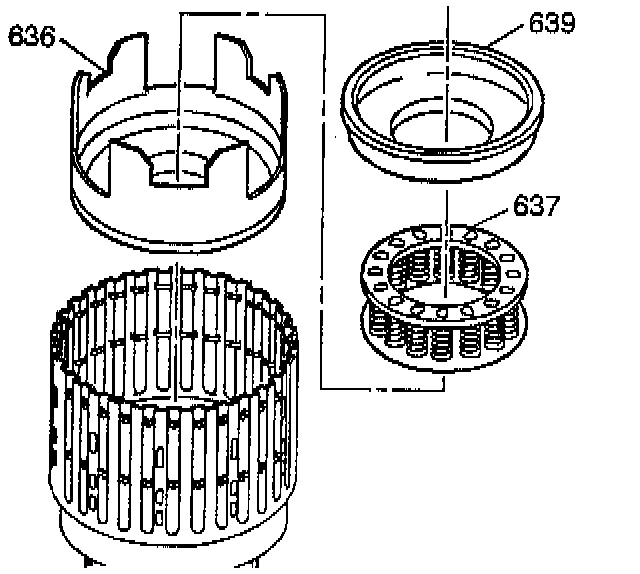

8. Install the input clutch piston assembly (636) into the input clutch housing assembly.
9. Install the input clutch spring retainer assembly (637) into the input housing assembly.
10. Install the third clutch piston housing (639) into the input housing assembly.





11. Use J23327 and J28535 in order to install the snap ring (640) in the third clutch housing.
12. Remove the tools.





13. Use transmission fluid in order to lubricate the new third clutch piston assembly (642). Install the assembly into the input housing (632).
14. Install the third clutch spring assembly (643) into the input housing (632).

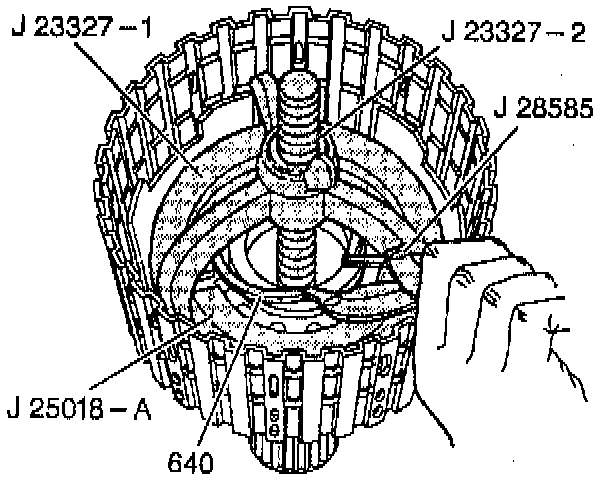

15. Use J23327, J25018-A, and J28585 in order to install the third clutch housing snap ring (640).

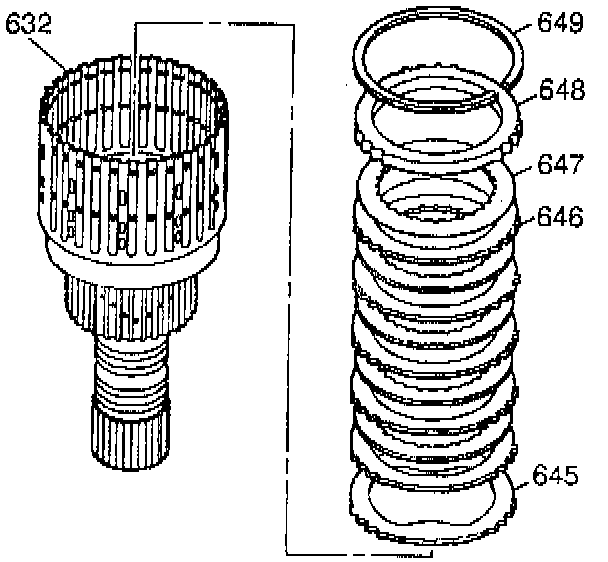

16. Insert the third clutch waved plate (645) into the input housing (632).

Important: Place the first external splined plate with its steel side against the waved plate. Place the fiber side of all plates face upward.

17. Insert the third clutch plates into the input housing. Start by inserting a steel third clutch plate (646) with external splines. Alternate with the internal splined plates (647).
18. Insert the third clutch backing plate (648) with the word UP facing upward.
19. Insert the snap ring (649) into the input housing.

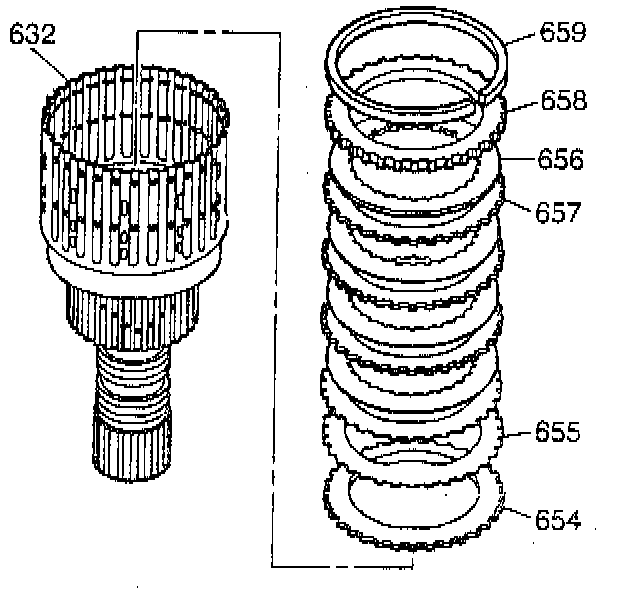

20. Insert the input clutch apply plate (654) into the input housing (632), so that the notched side of the teeth are facing downward against the snap ring on the third clutch backing plate.
21. Install the input clutch waved plate (655).
22. Start with the first input clutch steel plate (657). Assemble the fiber plates (656) alternately between the steel plates.
23. Insert the input clutch backing plate (658) with the tapered teeth side facing upward.
24. Insert the snap ring (659) on the input clutch housing.





25. Insert the input shaft thrust bearing assembly (644).
