Pinout Description
Pinout Description

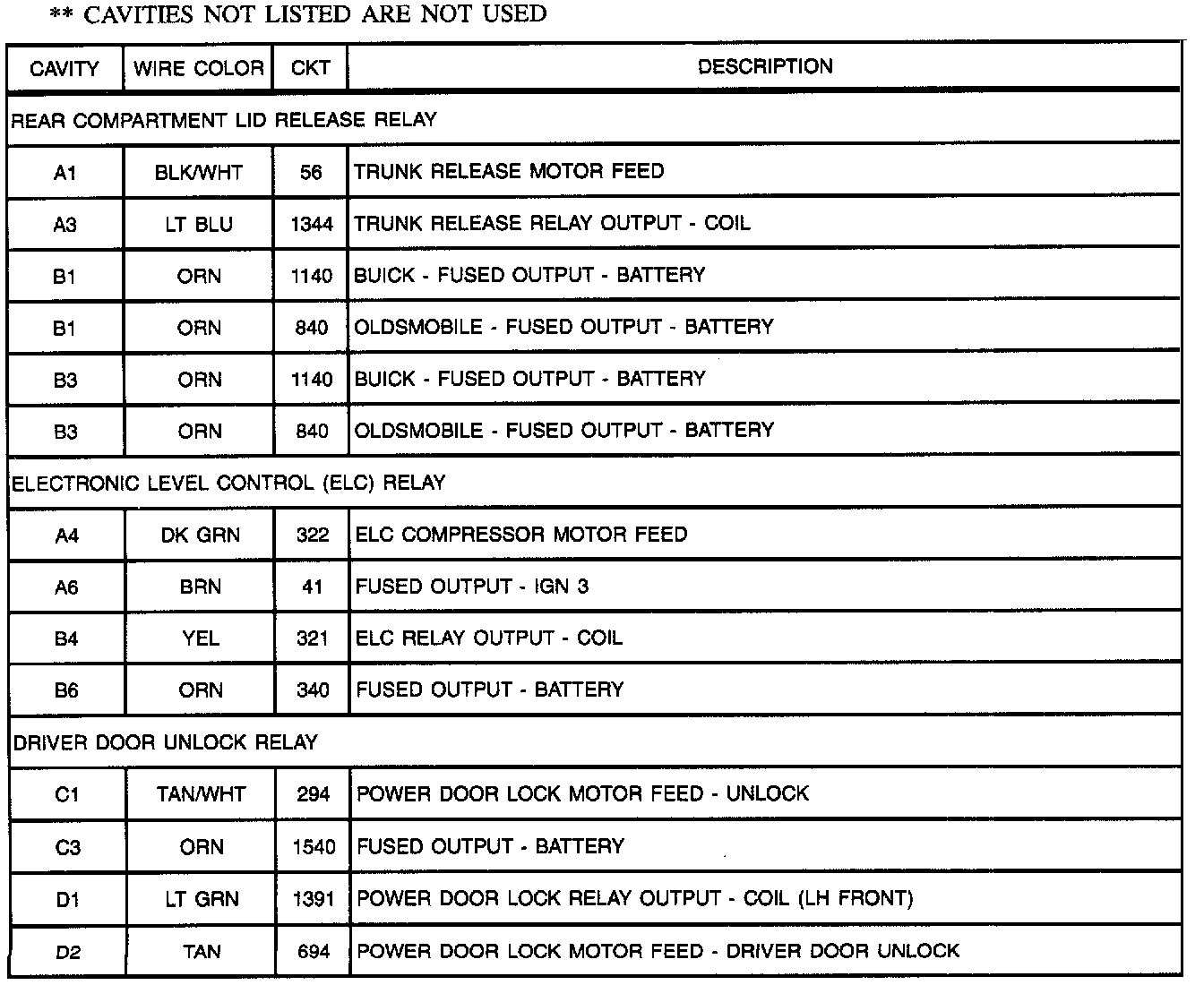

Relay Center Details: Relay Block #3 (Part 1 Of 2):

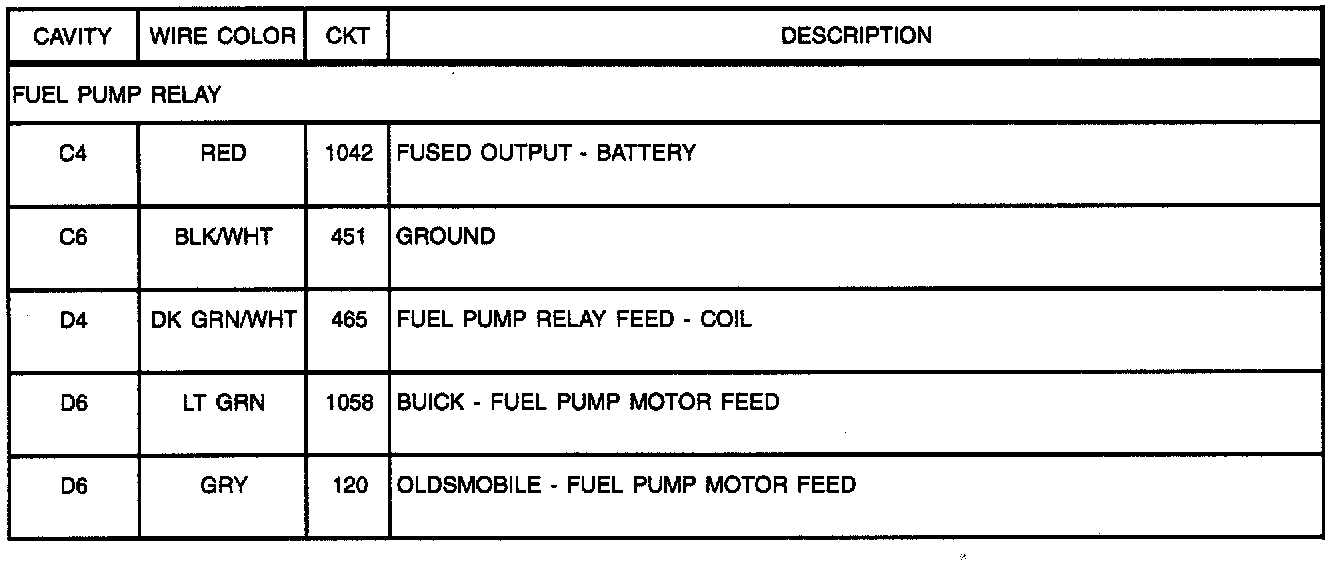

Relay Center Details: Relay Block #3 (Part 2 Of 2):
