Information Bus

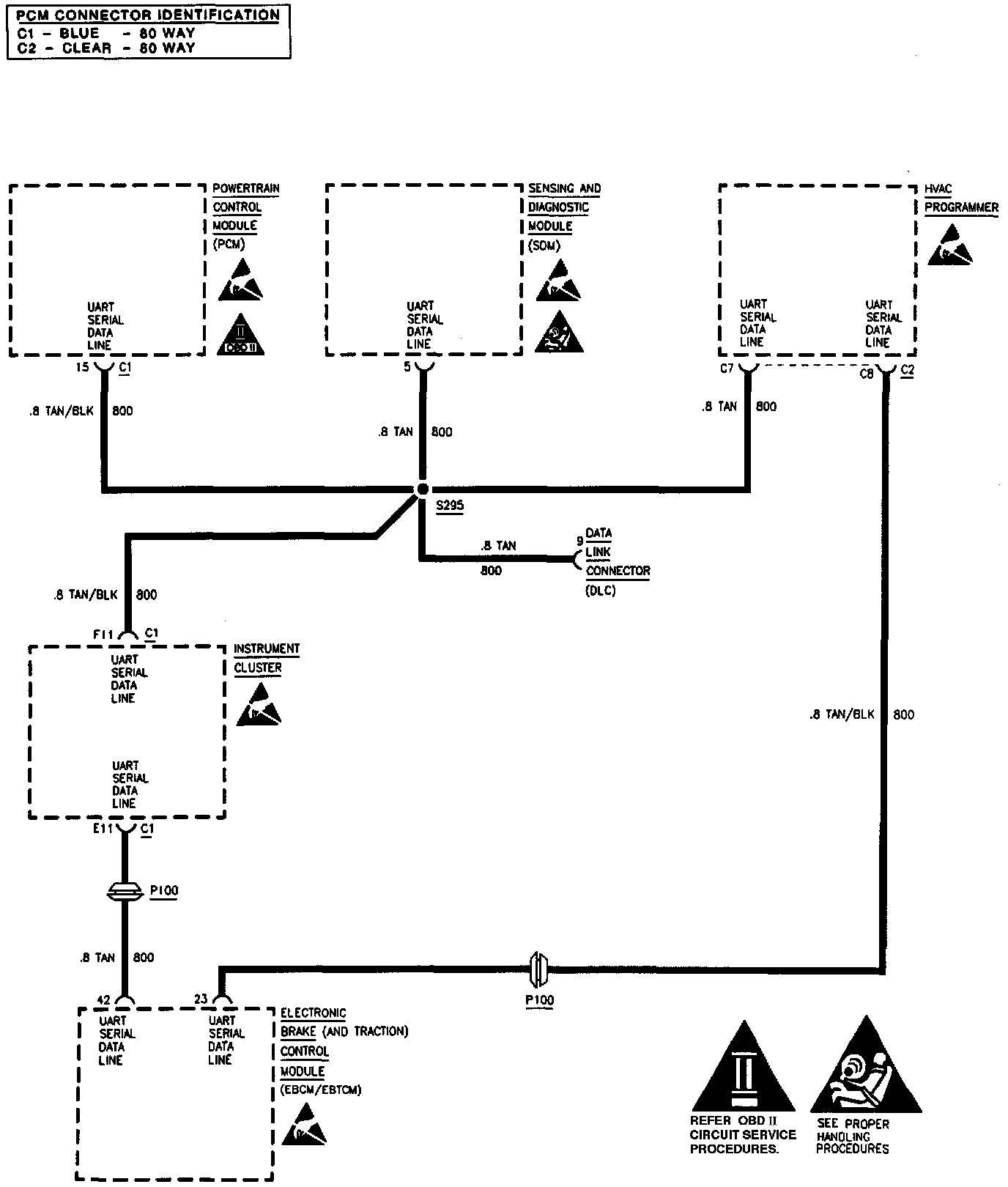

Data Link Connector: UART Serial Data Line:

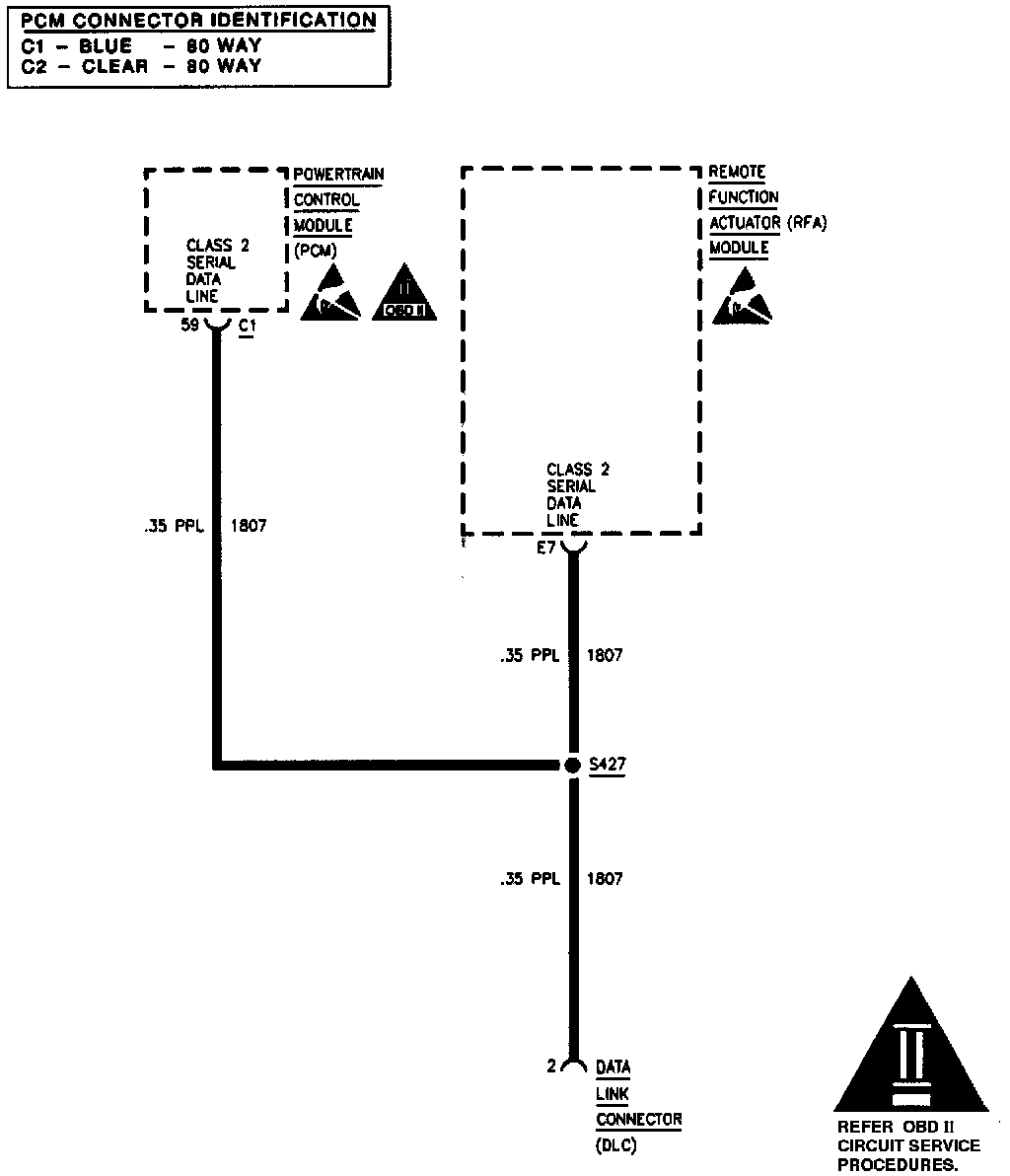

Data Link Connector: Class 2 Serial Data Line:



Data Link Connector: E & C Serial Data Line:
