HDLP Circuit Breaker, HVAC Blower MTR Fuse, PWR Seat Fuse
HDLP Circuit Breaker, HVAC Blower MTR Fuse, PWR Seat Fuse

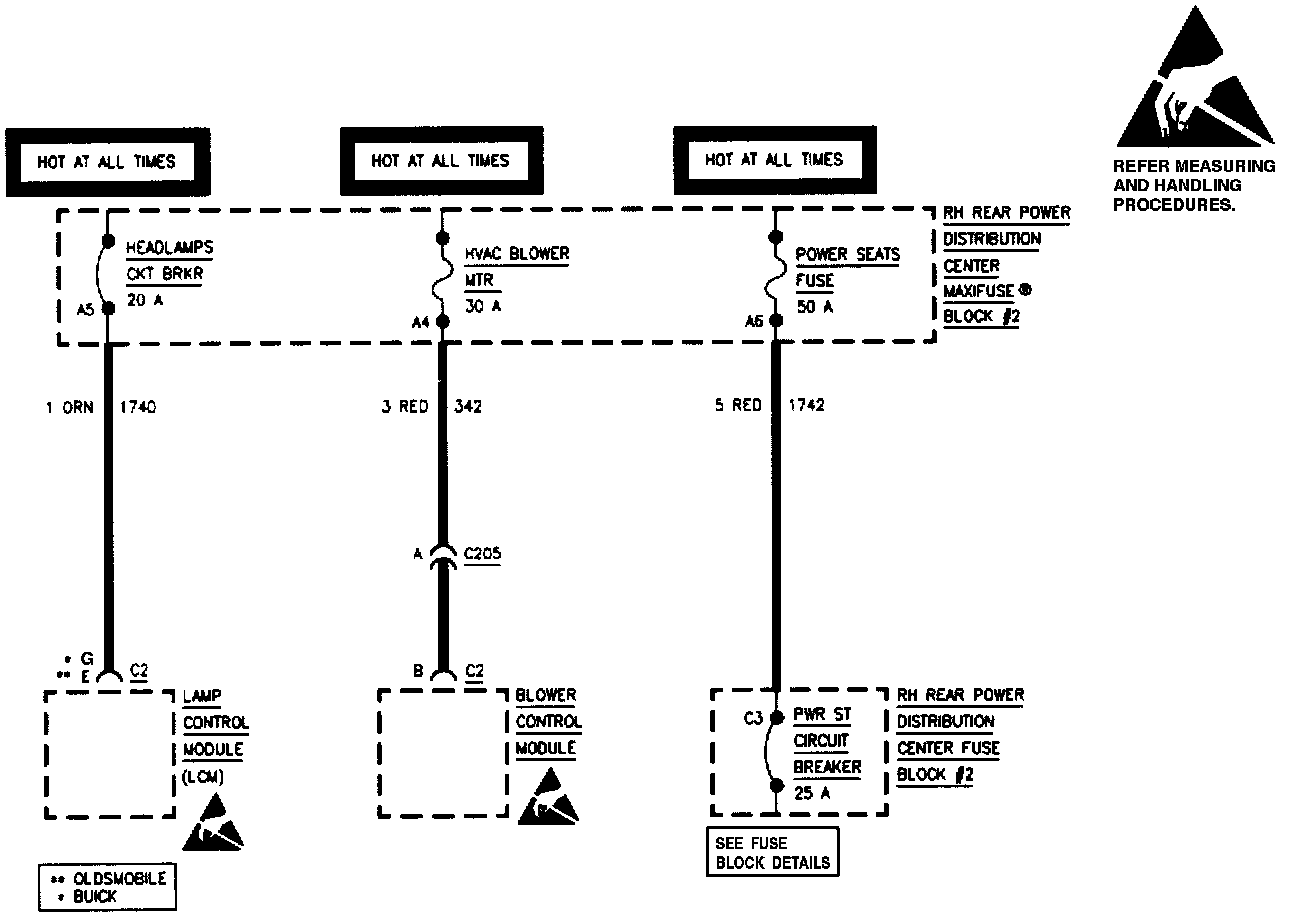

Power Distribution: HDLP CKT Breaker (20 A), HVAC Blower MTR Fuse (30 A), PWR Seats Fuse (50 A):
