Functional Test

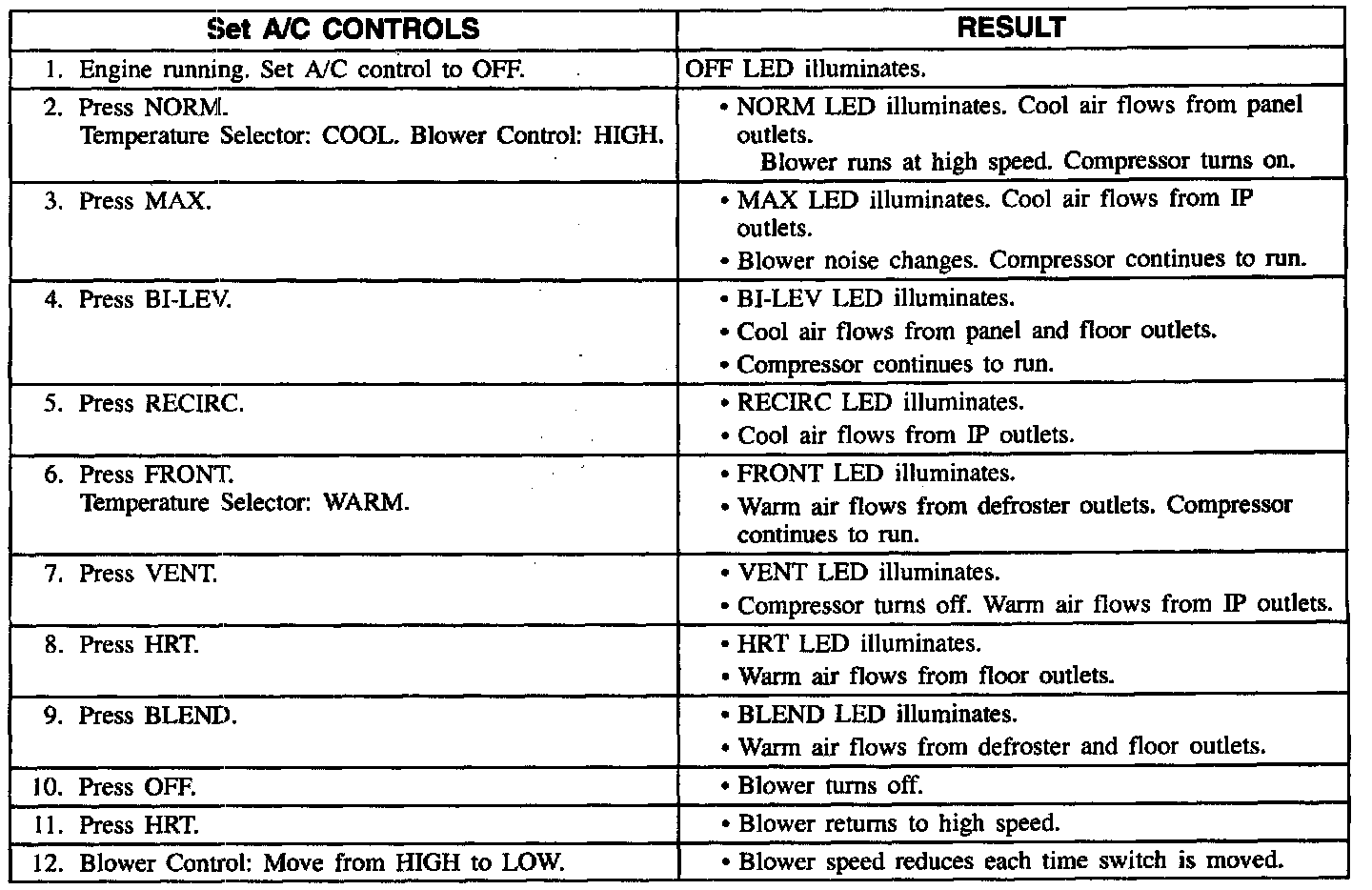

The following procedures check the Manual Air Conditioning System. All the steps in each procedure can be completed without using tools. Detailed diagnostic procedures follow the system check and are referenced in each step.
Complete this check with the temperature outside the vehicle at 16°C (60°F) or higher, and with the engine running.
