Home >> Buick >> 1998 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> EGR Valve

EGR Valve

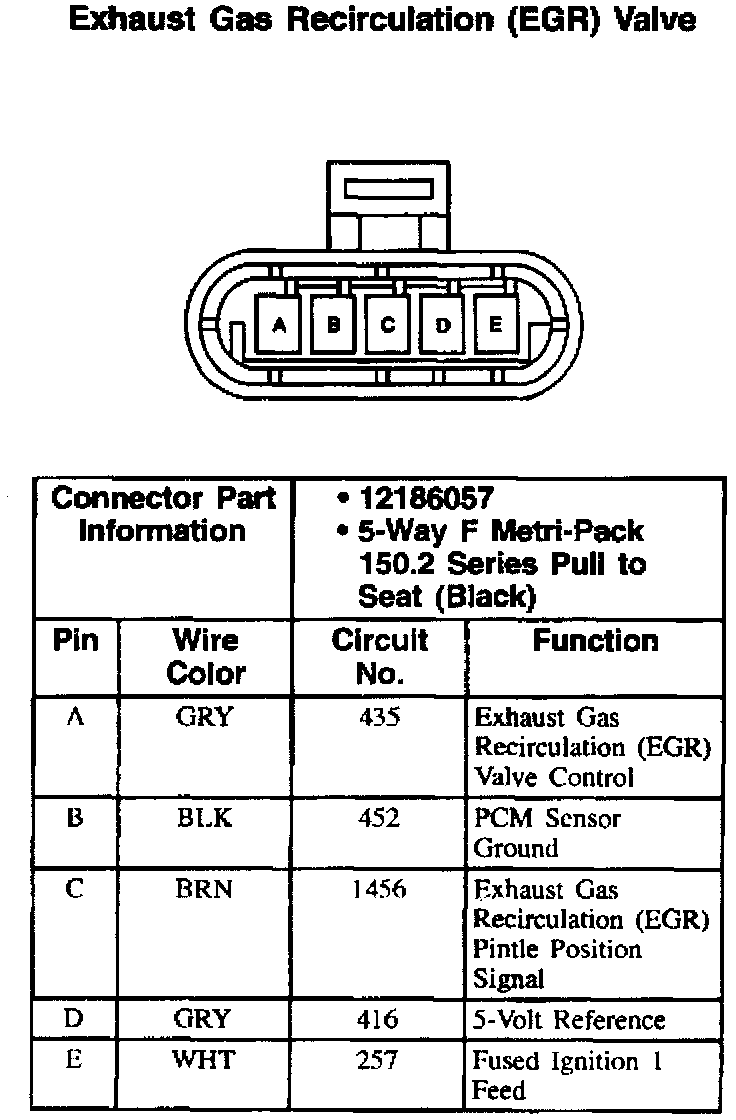

Exhaust Gas Recirculation (EGR) Valve:
