Connector Views
>>
Mirrors
>>
System Diagram
>>
Right Outside Mirror
Right Outside Mirror

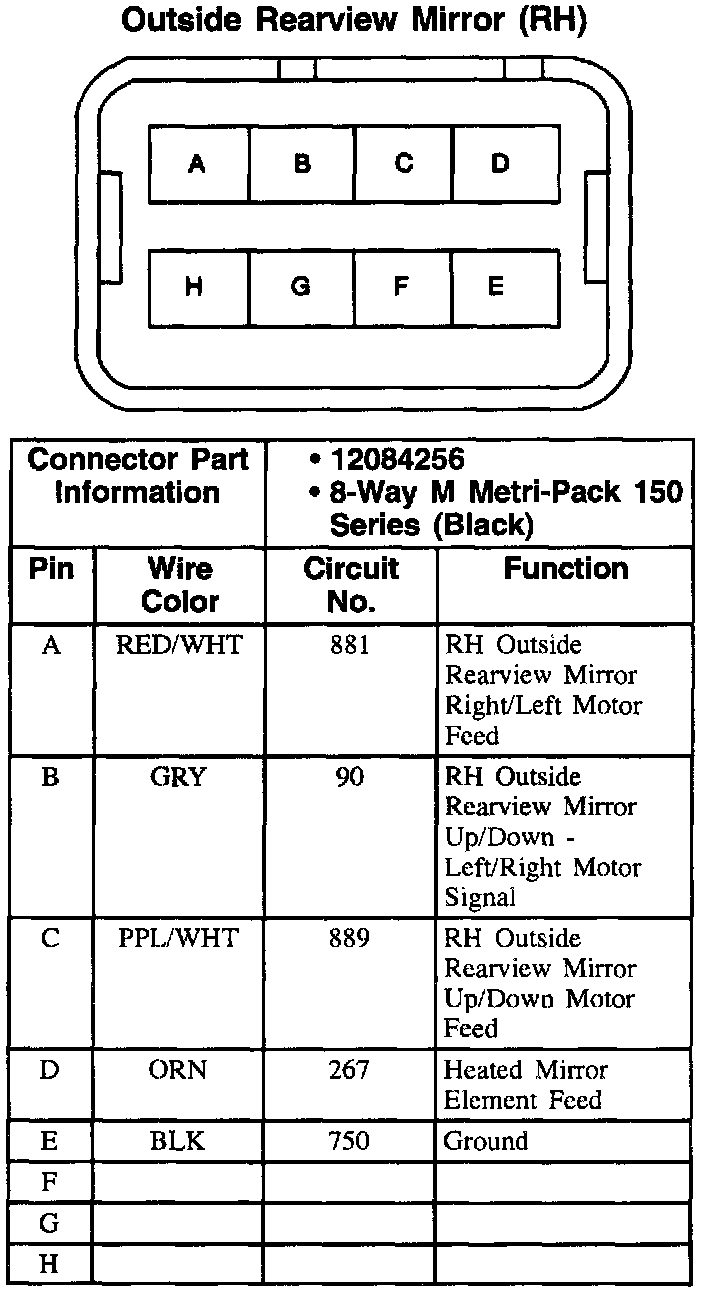

Outside Rearview Mirror (RH):
