Throttle Body Heater Hose Replacement-Outlet

REMOVAL PROCEDURE





1. Drain the cooling system.
2. Carefully disconnect the throttle body air inlet duct.

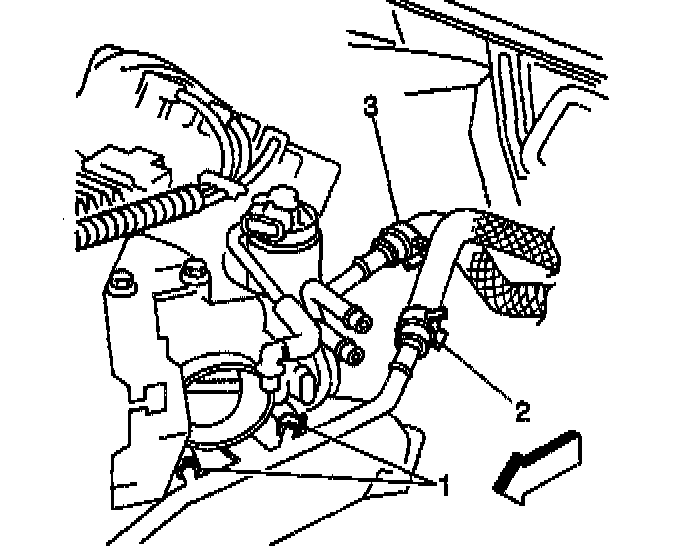

3. Disconnect the throttle body outlet hose clamp and the hose from the coolant pipe (1).
4. Disconnect the throttle body outlet hose clamp and hose from the throttle body.
5. Remove the throttle body outlet hose.

INSTALLATION PROCEDURE





1. Install the throttle body outlet hose.
2. Connect the throttle body outlet hose and clamp to the throttle body.

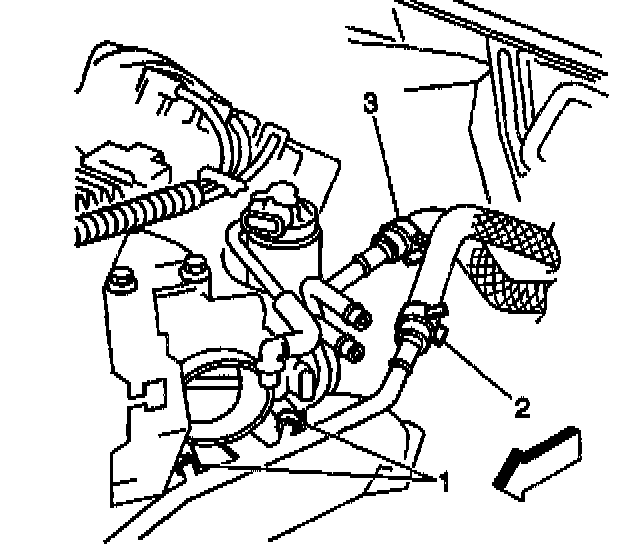

3. Connect the throttle body outlet hose and clamp to the coolant pipe (1).
4. Carefully install the throttle body air inlet duct.
5. Fill the cooling system.
6. Inspect for leaks.
