Magnasteer

Fastener Tightening Specifications

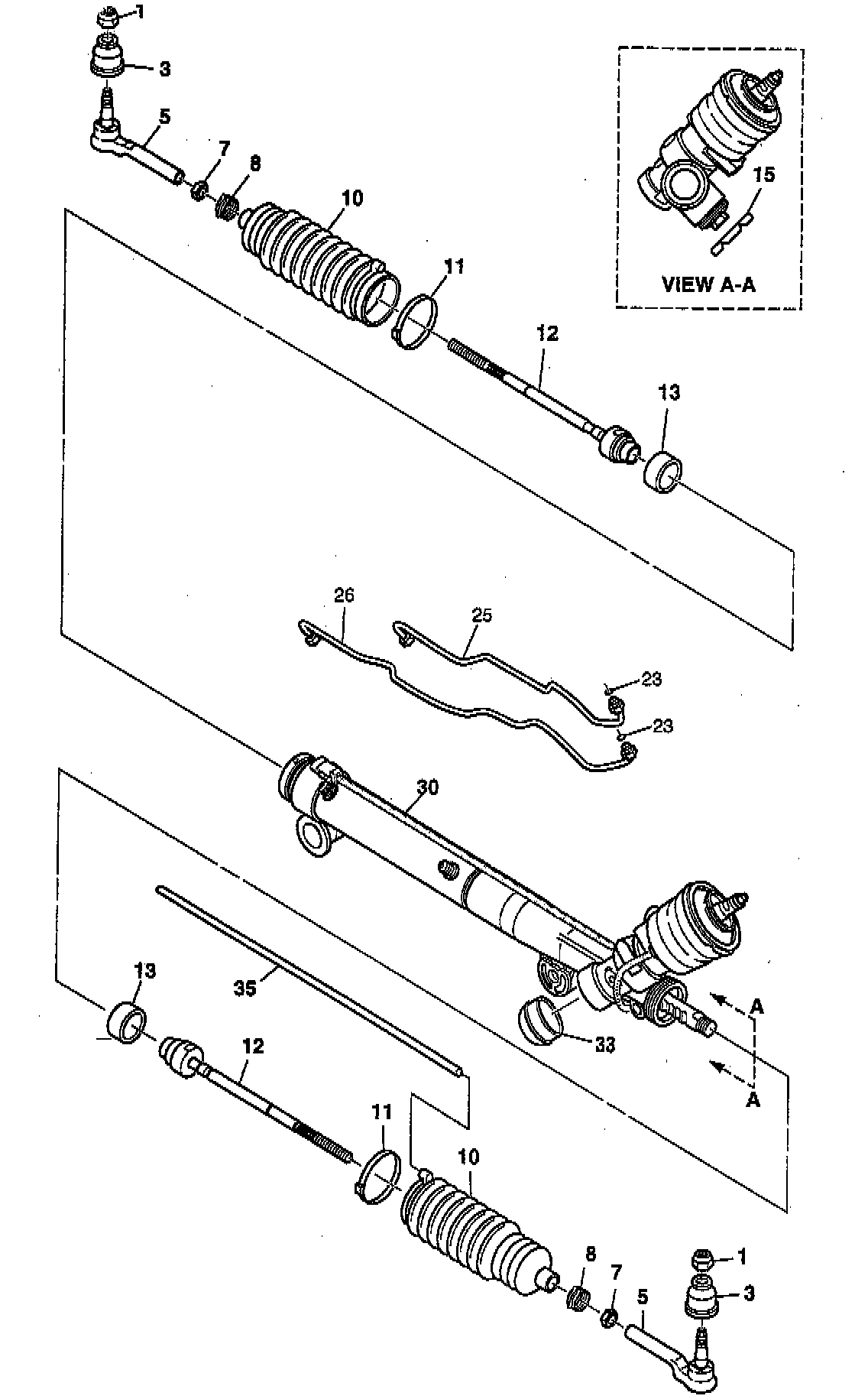

Lock Nut (15) 68 N.m (50 ft. lbs.)
Pinion Preload 1.8 N.m (16 inch lbs.)
Valve End Fittings 16.9 N.m (12.6 ft. lbs.)
Cylinder End Fittings 27 N.m (20 ft. lbs.)
