Vacuum Modulator and Valve Assemble

^ Tools Required
- J 36850 Assembly Lubricant (or equivalent)

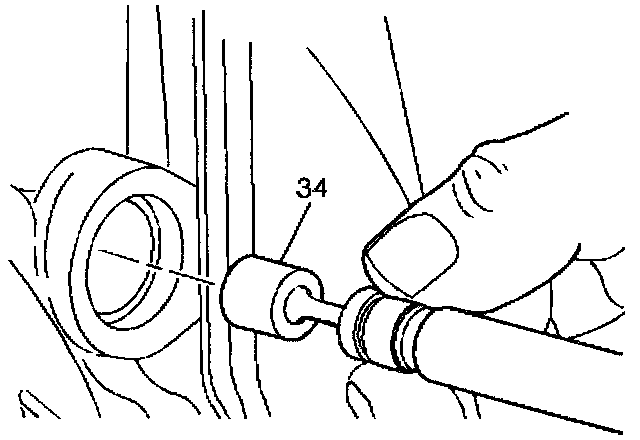

1. Use a small magnet tool in order to install the modulator valve (34) into the case.

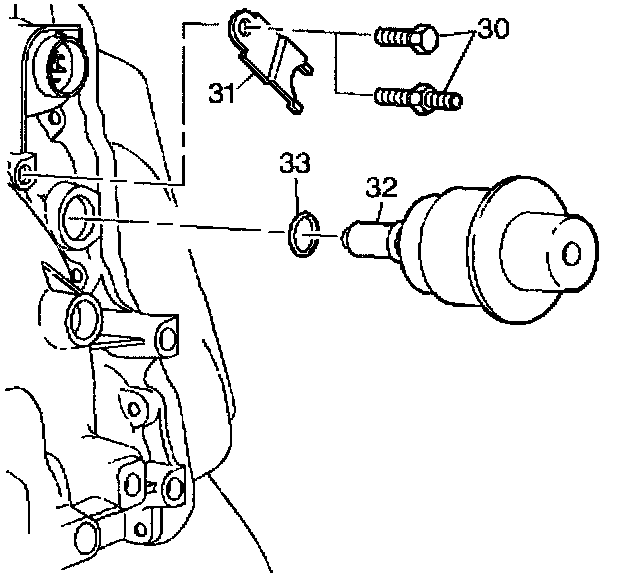

2. Apply J 36850 or equivalent to a new modulator O-ring seal (33).
3. Install the new O-ring seal (33) onto the modulator assembly (32).
4. Install the modulator assembly (32) into the case (3).
5. Install the modulator retainer (31).
6. Install the modulator retainer bolt (30).
^ Tighten the bolt to 24 Nm (17 ft. lbs.).
