Driven Sprocket Support Assemble

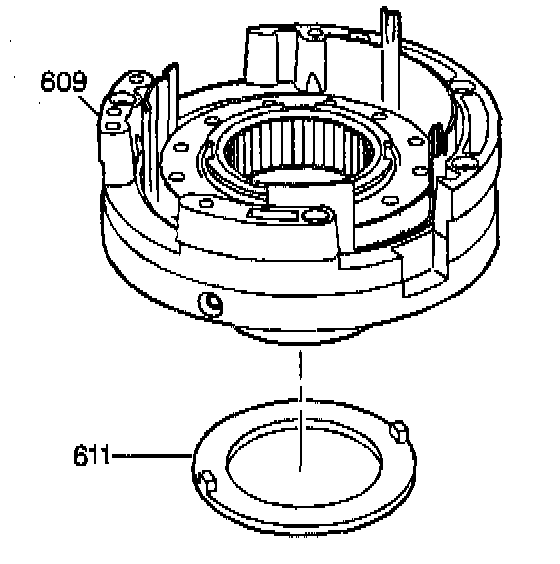

1. Use Transjel(R) or equivalent in order to secure the housing thrust washer (611) for the second clutch to the driven sprocket support assembly (609).

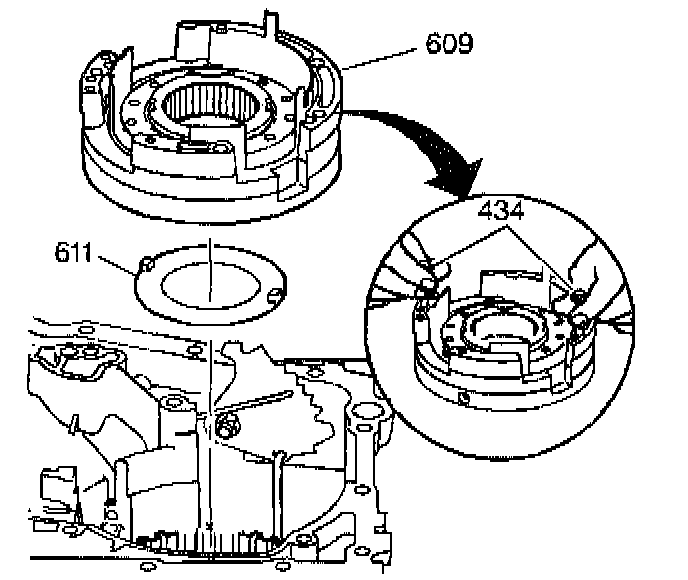

2. Finger start two 13 mm channel plate bolts (434) into the driven sprocket support (609).

IMPORTANT: If the support is not flush with the case, then one of the clutches is not fully seated.

3. Using the bolts, lift the driven sprocket support into the case. The top of the support should be flush with the case.
