Forward Band Servo Assemble

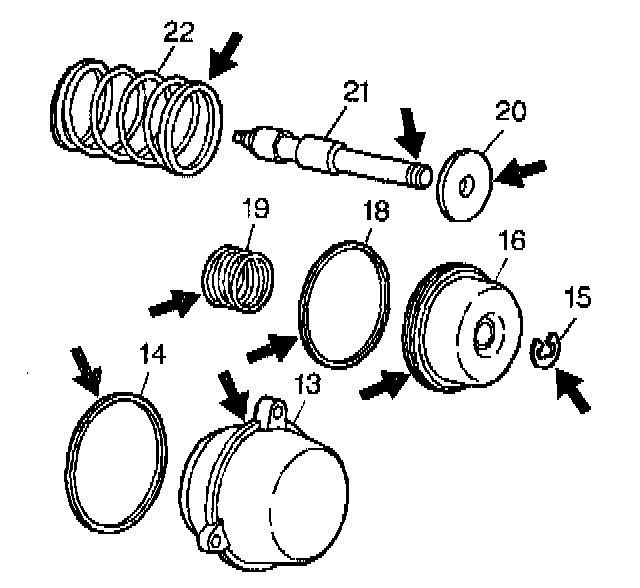

1. Inspect the forward band servo components for the following conditions:
^ Damaged, worn or porous servo piston (16)
^ Damaged servo piston seal (18)
^ Damaged, worn or porous servo cover (13)
^ Damaged servo cover seal (14)
^ Broken or collapsed servo piston spring (22)
^ Broken or collapsed servo piston cushion spring (19)
^ Damaged or worn servo piston pin (21)

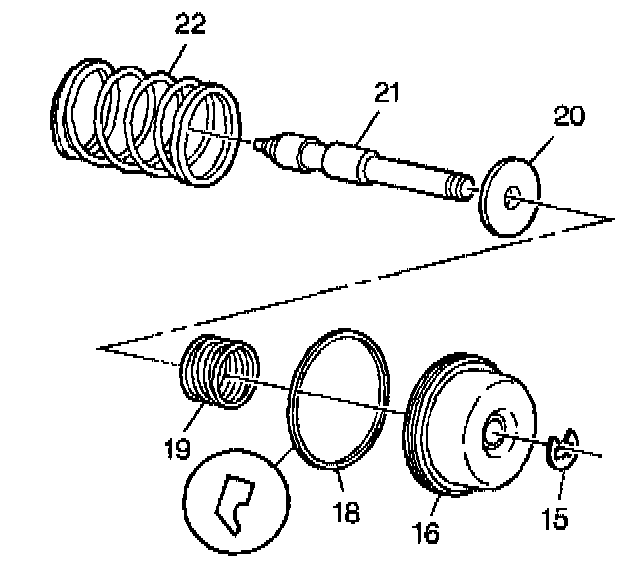

2. Assemble the servo piston (16), servo piston cushion spring (19), servo piston retainer (20) and servo piston pin (21).
3. Install the servo pin retaining ring (15) onto the servo piston pin (21).
4. Install the servo piston oil seal ring (18) onto the servo piston (16).
5. Assemble the servo piston spring (22) onto the servo assembly.





6. Position the transaxle so that the oil pan is facing up.
7. Install the servo cover seal (14) onto the servo cover (13).

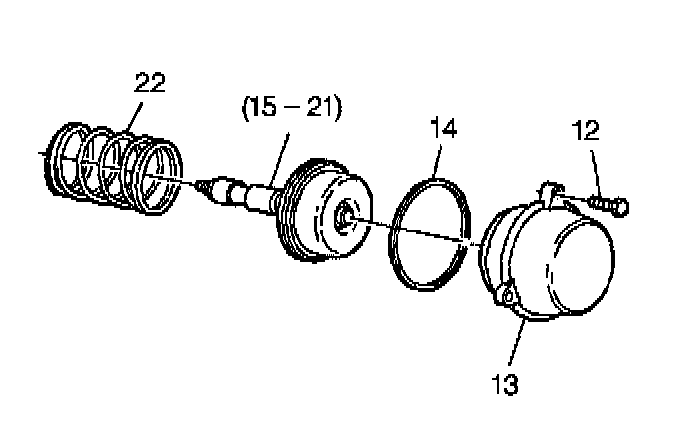

8. Assemble the servo assembly (15-22) into the servo cover (13). Pivot the servo into the cover to prevent the piston seal from being damaged.
9. Install the servo and cover assembly (13-22) into the case.

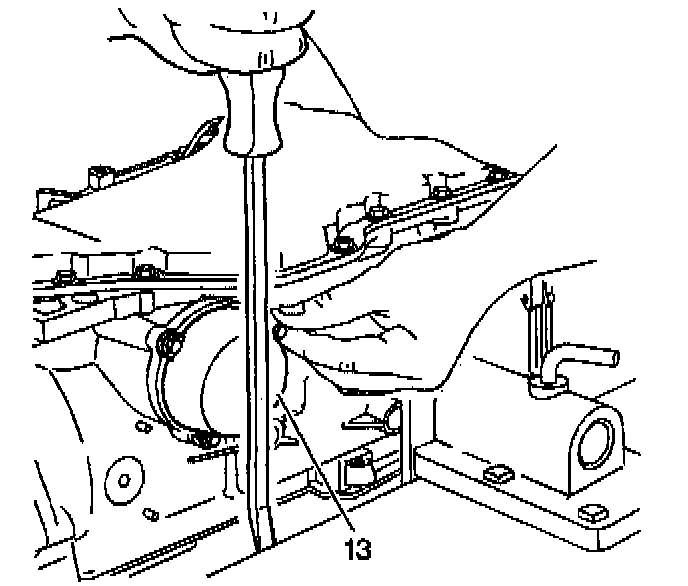

10. Using a long screwdriver, pry against the work bench to compress the forward band servo assembly (13).
11. Hold the servo assembly compressed.
12. Install the three forward band servo cover bolts (12).
^ Torque to 10 Nm (89 inch lbs.).

13. Remove the long screwdriver.
