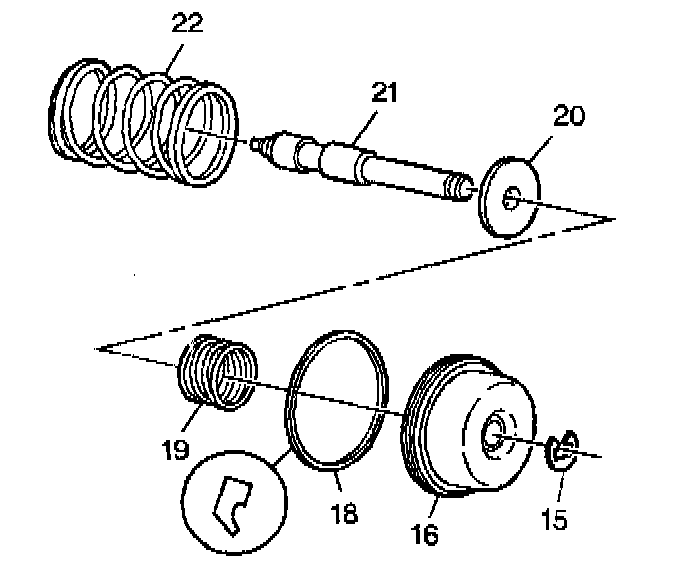

Forward Band Servo Components Disassemble

1. Disassemble the servo piston spring (22) from the servo assembly.
2. Remove the servo piston oil seal ring (18) from the servo piston (16).
3. Using a small screwdriver, remove the servo pin retaining ring (15) from the servo piston pin (21).
4. Disassemble the servo piston (16), servo piston cushion spring (19), servo piston retainer (20) and servo piston pin (21).
