Cruise Control Cable Replacement

Cruise Control Cable Installation:

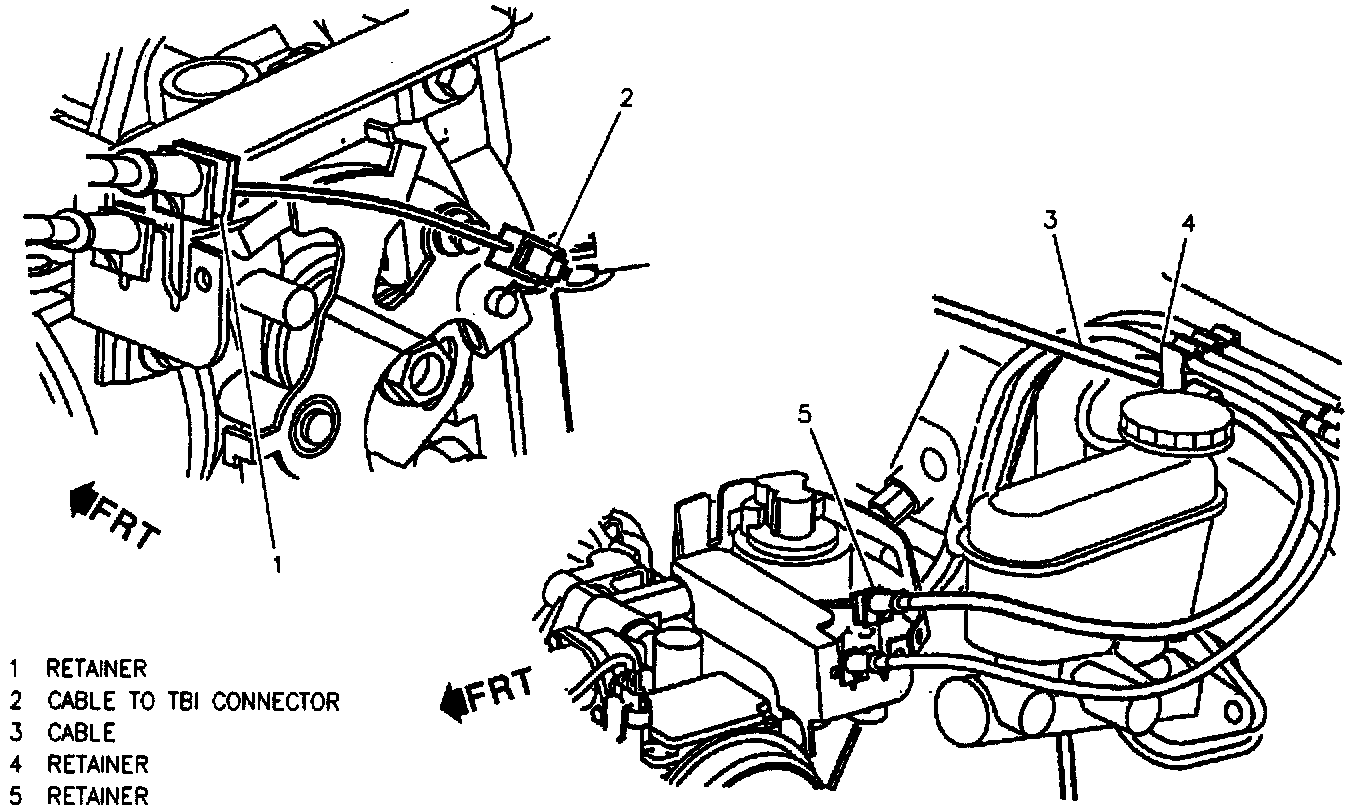

Cruise Control Cable To Module Attachment:

REMOVE OR DISCONNECT
1. Cruise control cable from TBI cam and throttle body bracket.
2. Cruise control cable from cruise control module.

IMPORTANT
^ Note cable routing for replacement.

INSTALL OR CONNECT
1. Cruise control cable to cruise control module.
2. Cruise control cable to TBI cam and throttle body bracket.
3. Adjust cable.
