Data List

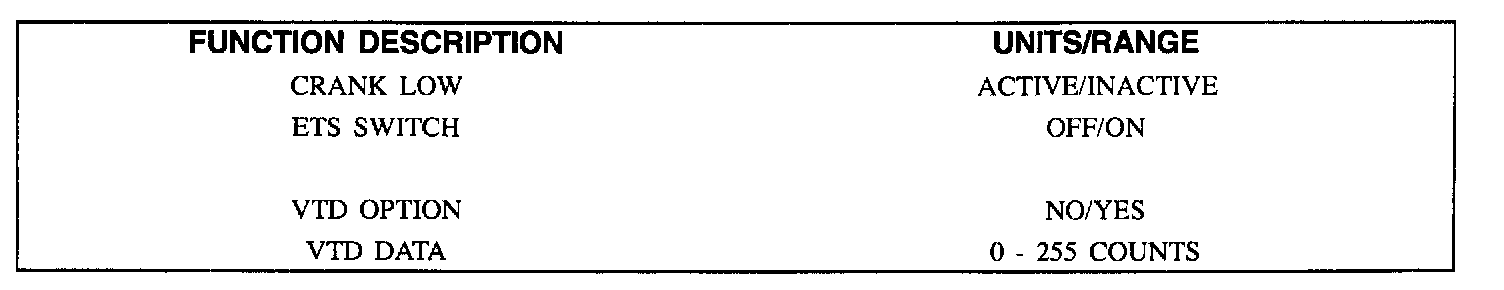

Table #1, DATA LIST (VTP Functions Only):

The scan tool can also list an Instrument Cluster data list called the DATA LIST ( Refer to TABLE #1). This list shows the status of the hardwired connections made to the Instrument Cluster and can be very useful in diagnosing the PASSLOCK TM system. This table is broken into display pairs as the scan tool lists two function descriptions per screen.
