Battery Replacement

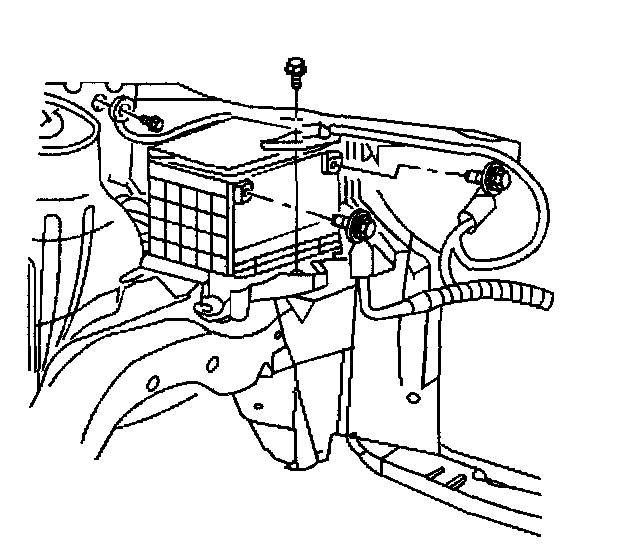

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable at the battery.
2. Remove any brackets or braces that are in the way.
3. Disconnect the positive battery cable from the battery.
4. Remove the battery retainer bolt.
5. Remove the battery retainer.
6. Remove the battery.
7. Remove the insulator from the battery.

INSTALLATION PROCEDURE
1. Install the battery insulator to the battery.
2. Install the battery.
3. Connect the battery retaining bolt.
Tighten
Tighten the battery retaining bolt to 18 N.m (13 lb ft).

NOTICE: Refer to Fastener Notice in Cautions and Notices.

4. Install any brackets or braces that were removed.
5. Connect the positive battery cable.
Tighten
Tighten the positive battery cable to 15 N.m (11 lb ft).

6. Connect the negative battery cable.
Tighten
Tighten the negative battery cable to 15 N.m (11 lb ft).
