Steering/Suspension Shock Absorber

REMOVAL PROCEDURE
1. Open the rear compartment lid.
2. Remove the shock absorber upper cover.

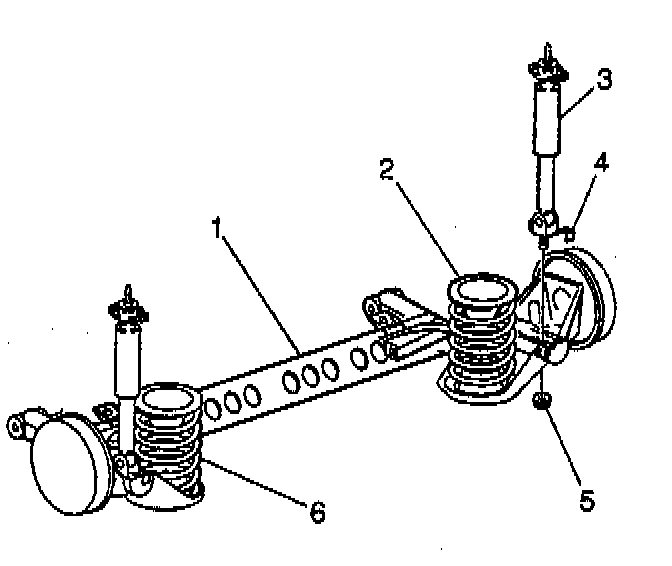

Important: Remove one shock absorber (3) at a time, if both shock absorbers are to be replaced.

3. Remove the upper shock absorber attaching nut (5).
4. Raise the vehicle on the hoist and support the rear axle (1) with adjustable jack stands.
4.1. When lifting the vehicle with the body hoist, it will be necessary to support the rear axle with adjustable jack stands.
4.2. When lifting the vehicle with the suspension hoist, care should be taken to align the axle on the hoist prior to lifting.
5. Remove the shock absorber nut (5).

INSTALLATION PROCEDURE
1. Install the shock absorbers at the lower attachment.
2. install the nut (5) and hand tighten.
3. Orient the lower attachment tab (4) toward the rear of the car.
4. Lower the vehicle enough to guide the upper stud through the body opening and install the upper shock absorber attaching the nut loosely.

Tighten
Tighten the shock absorber lower mounting nuts to 47 Nm (35 ft. lbs.).

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

5. Remove the axle support and lower the vehicle all the way and then tighten the shock absorber upper nut.

Tighten
Tighten the upper shock absorber mounting nut to 29 Nm (21 ft. lbs.).

6. Replace the shock absorber upper cover.
