1-2 Support Drum and Forward Band Disassemble

^ Tools Required
- J 38358-A 1-2 Support Remover and Installer

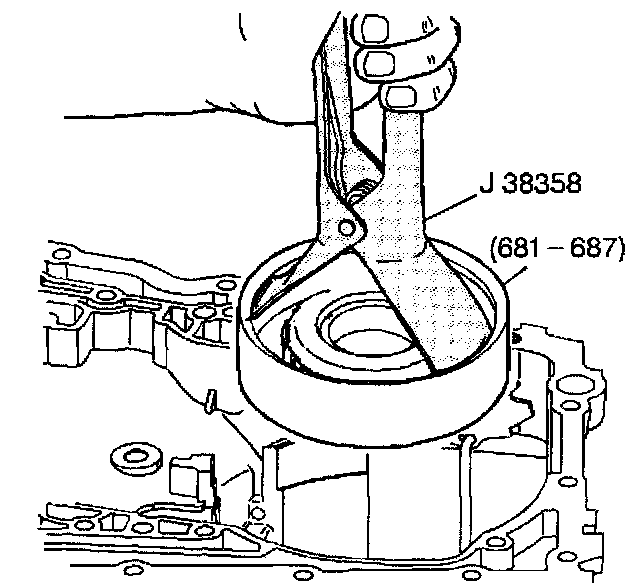

1. Install J 38358-A onto the 1-2 support drum assembly (681-687).
2. Lift J 38358-A with the 1-2 support drum out of the case.

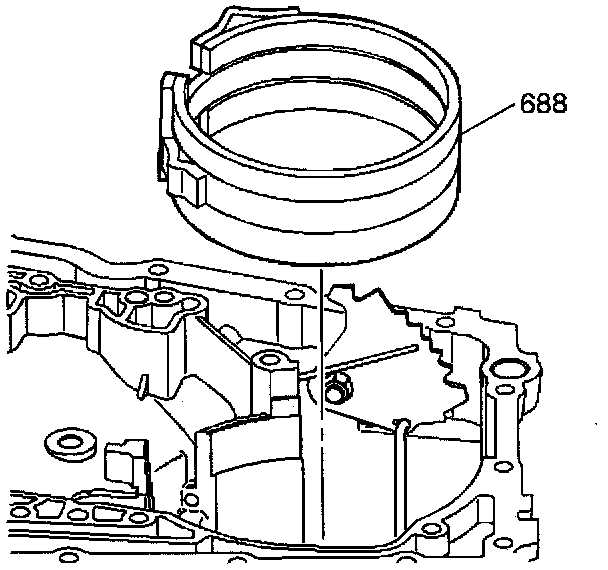

3. Tilt the forward band assembly (688) in order to disengage the band from the anchor pin in the case. Remove the forward band assembly.
