Speaker Replacement - Front (UQ8)

REMOVAL PROCEDURE
1. Remove the IP upper trim pad.
2. Remove the fasteners.

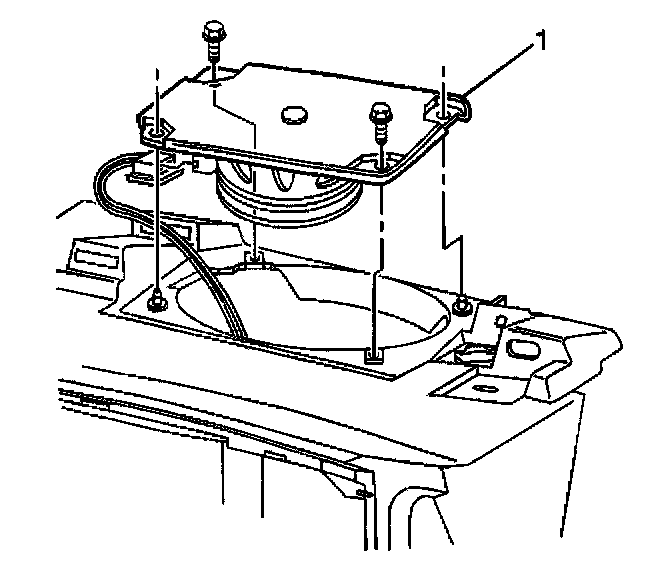

3. Raise the speaker (1).
4. Disconnect the electrical connector(s).

INSTALLATION PROCEDURE
1. Connect the electrical connector(s).
2. Install the speaker: (1).

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the speaker fasteners.

Tighten
Tighten the fasteners to 1.9 N.m (17 lb in).

4. Install the IP upper trim pad.
