Instrument Panel (IP) - Cluster Trim Panel Replacement

REMOVAL PROCEDURE

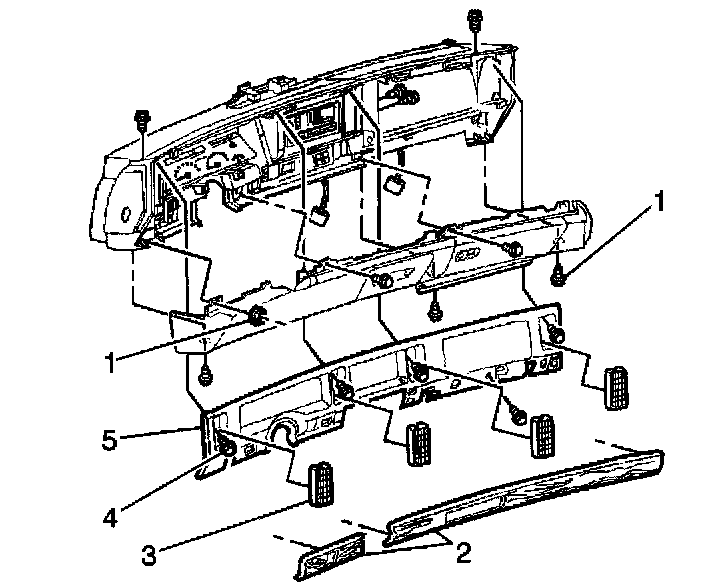

1. Remove the IP lower trim plate (2). Carefully pry out the trim plate.
2. Remove the air deflectors (3). Carefully pry out the air deflectors.

IMPORTANT: When removing the fasteners from the air duct openings be careful not to drop the fasteners down the openings.

3. Remove the IP trim plate fasteners (4).
4. Disengage the retaining clips at the top of the trim plate.
5. Remove the IP trim plate (5).

INSTALLATION PROCEDURE
1. Align the IP trim plate (5) retaining clips to the IP. Push inward to fasten the trim plate.

IMPORTANT: When installing the fasteners to the air duct openings be careful not to drop the fasteners down the openings.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the IP trim plate fasteners (4).

Tighten
Tighten the fasteners to 1.9 N.m (17 lb in).

3. Snap in the air deflectors (3).
4. Install the IP lower trim plate (2).
