G202

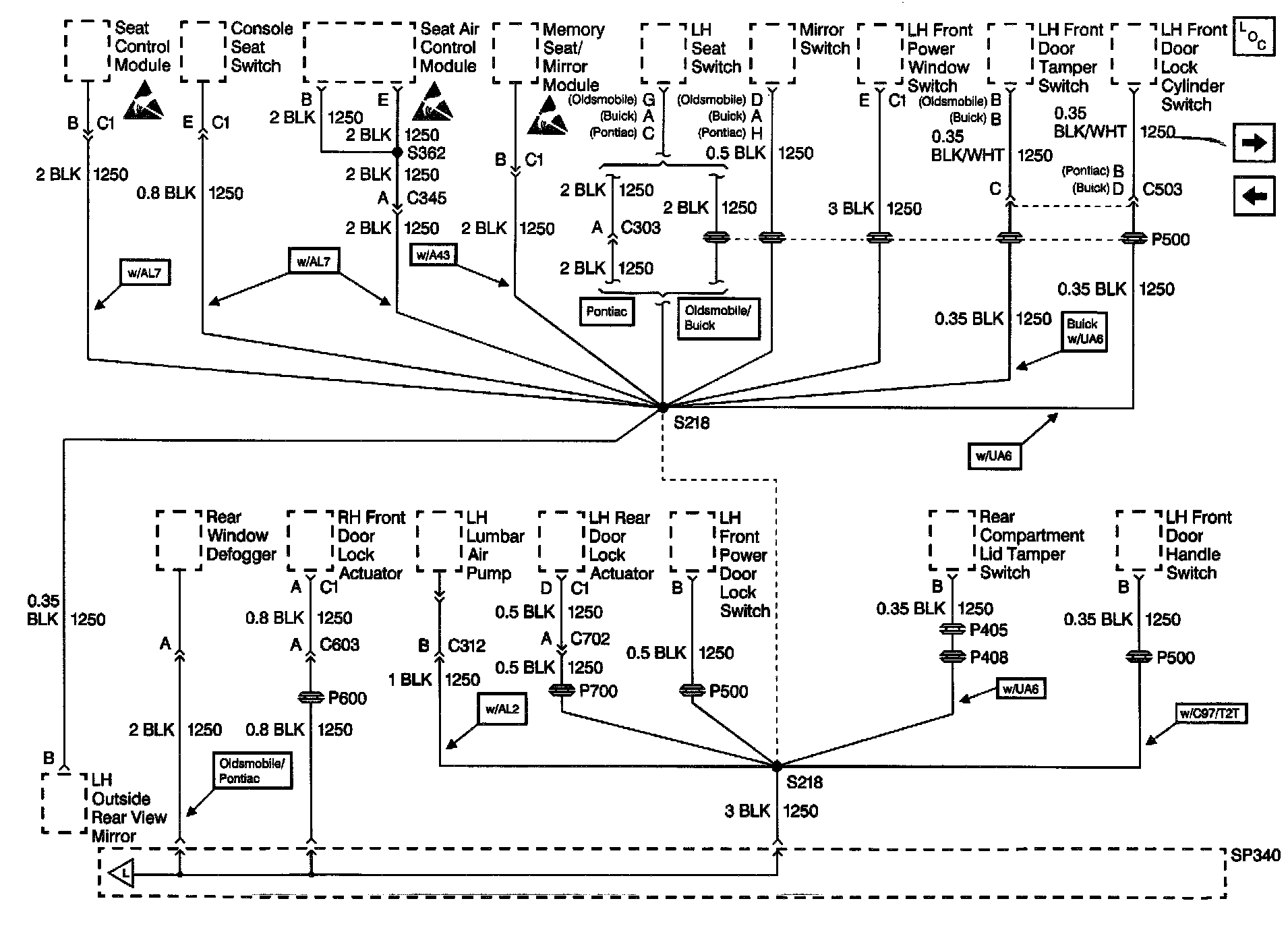

Ground Distribution Schematics: G202 (Part 1 Of 4):




Ground Distribution Schematics: G202 (Part 2 Of 4):




Ground Distribution Schematics: G202 (Part 3 Of 4):




Ground Distribution Schematics: G202 (Part 4 Of 4):




Ground Distribution Schematics: G202 (Buick):
