Radio Replacement

REMOVAL PROCEDURE




1. Remove the instrument cluster trim plate.

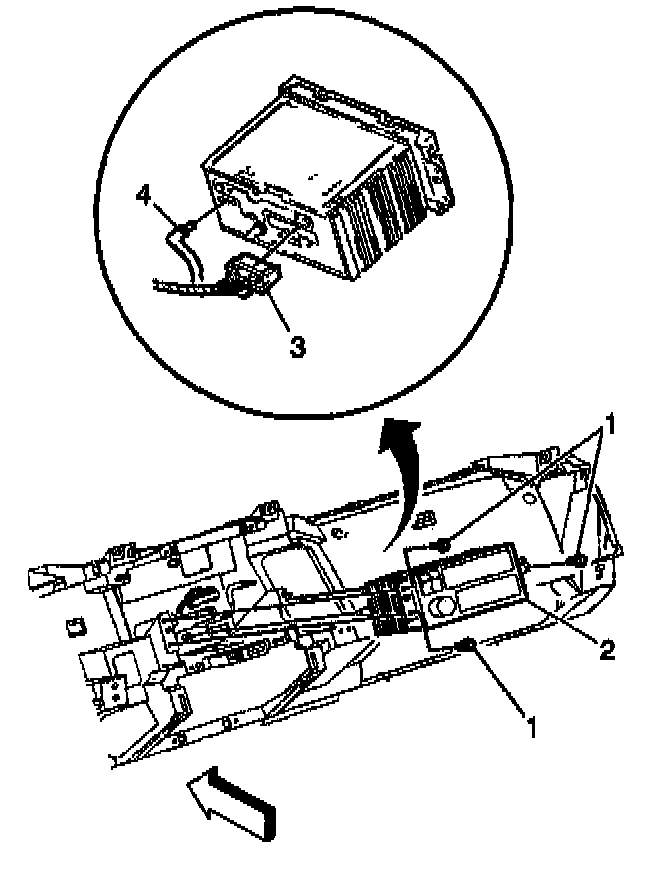

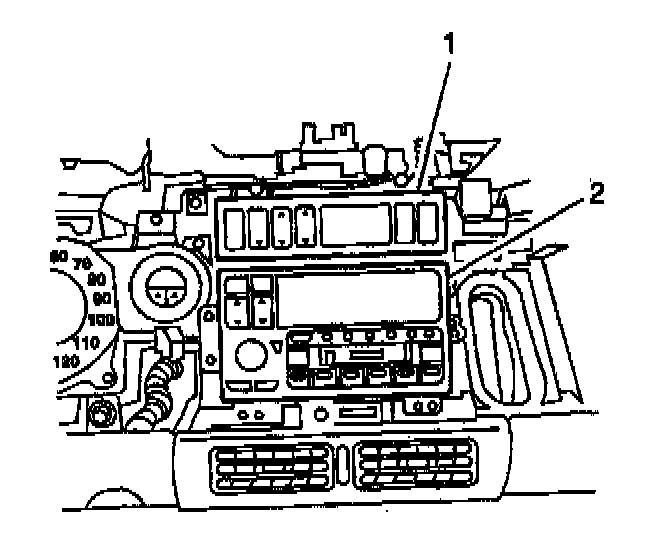

2. Remove the fasteners (1) that retain the radio to the instrument panel.
3. Disconnect the electrical connector (3).
4. Disconnect the antenna lead (4) from the radio.




5. Remove the radio (2).

INSTALLATION PROCEDURE




1. Install the radio (2).




2. Connect the electrical connector (3).
3. Connect the antenna lead (4) to the radio.

NOTE: Refer to Fastener Notice in Cautions and Notices.

4. Install the fasteners (1) in order to retain the radio to the instrument panel.

Tighten
Tighten the fasteners to 1.9 N.m (17 lb in).

5. Install the instrument cluster trim plate.
