Door Locks: Service and Repair

REMOVAL PROCEDURE
1. Remove the trim panel.
3. Remove the harness from the latch (3).
4. Remove the lock rods from the latch (3).
5. Remove the 3 screws.

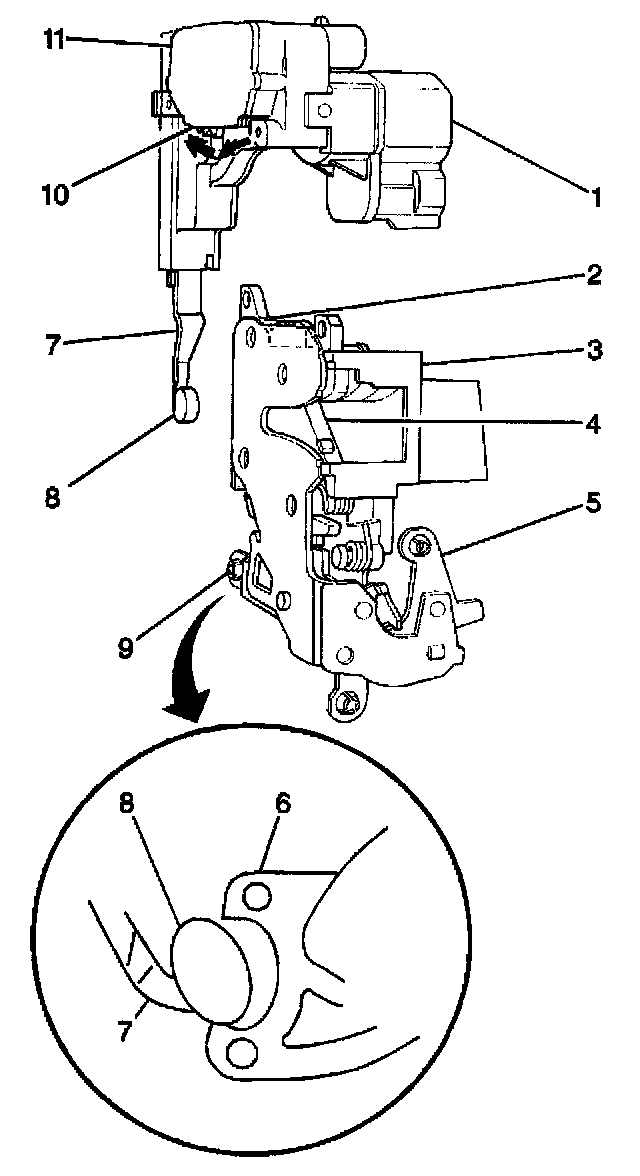

6. Remove the lock assembly (1).

INSTALLATION PROCEDURE
1. Install the lock assembly (1).

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the 3 screws.

Tighten
Tighten the screws to 7 N.m (62 lb in).

3. Install the lock rods to the latch (3).
4. Install the harness to the latch (3).
5. Install the upper part of the water deflector.
6. Install the trim panel.
