Valve Spring: Service and Repair

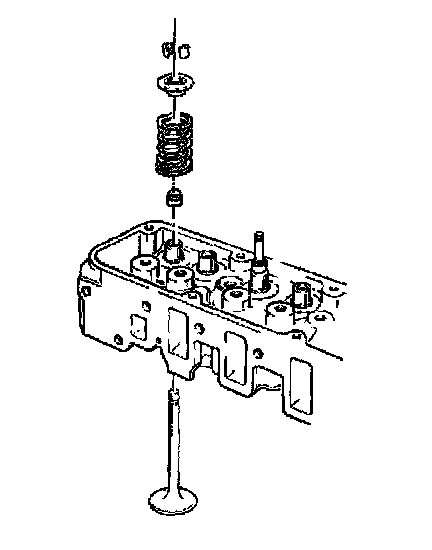

REMOVAL PROCEDURE

^ Tools Required
- J 38606
- J 22794

1. Remove the right valve rocker arm cover.





2. Remove the valve rocker arm assemblies.
3. Remove the spark plugs.

Important: Rotate the engine so that the piston in the cylinder that you are servicing is at top dead center before removing the valve keys. Do this in order to eliminate the possibility of the valve falling into the cylinder.

4. Install the J22794 into the cylinder head. Charge the cylinder with compressed air in order to hold the valves closed.
5. Use the J 38606 in order to compress the valve spring.
6. Remove the valve keys.
7. Remove the valve cap.
8. Remove the valve spring.
9. Pry up on the bottom of the seal in order to remove the valve stem oil seal.

INSTALLATION PROCEDURE

^ Tools Required
- J 38606
- J 41512

1. Place the oil seal over the valve stem so that the seal begins to contact the valve guide.

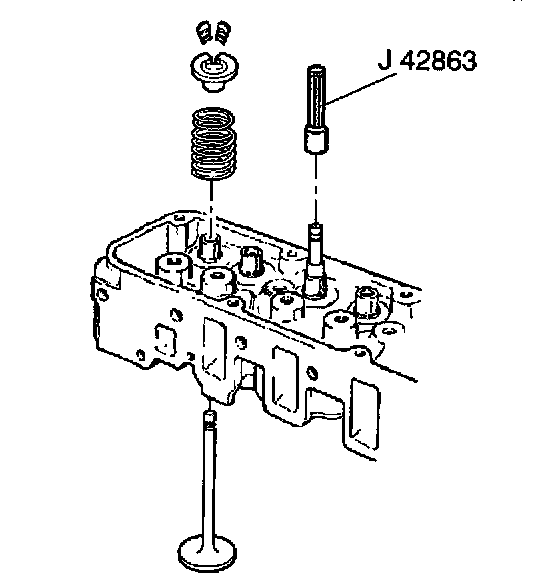

Important: Use hand pressure only when installing the valve stem oil seal using the J 42863. Using too much force could cause damage to the oil seal and possibly lead to excessive oil consumption.





2. Use the J 41512 in order to push the valve stem seal over the guide.
3. Use the J 38606 in order to install the valve spring. Install the valve cap.
4. Install the valve keys.
5. Repeat the previous steps for each valve.
6. Depressurize the cylinder.
7. Remove the J 22794
8. Install the spark plug.
9. Install the valve rocker arm assemblies.
10. Install the right valve rocker arm cover.
