38. Piston and Connecting Rod Disassemble

Caution: Handle the piston carefully. Worn piston rings are sharp and may cause bodily injury.

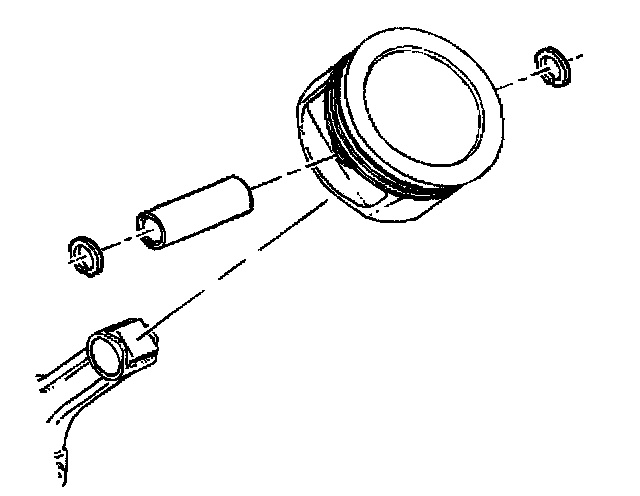

1. Remove the piston rings. Use a suitable tool to expand the rings. Piston rings must not be reused.

Important: Two retainers hold the piston pins in place. Reuse the retainers if they are not damaged. Ensure the piston pin is not damaged.





2. Remove the piston pin retaining clips.
3. Remove the piston pin.
