63. Engine Block Plug Installation

Notice: Refer to Fastener Notice in Service Precautions.

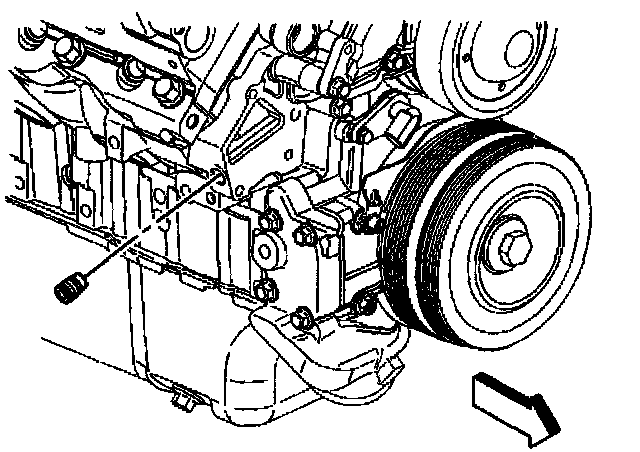

1. Install the threaded oil jacket plugs.
^ Tighten the oil jacket plugs to 30 Nm (22 ft. lbs.).

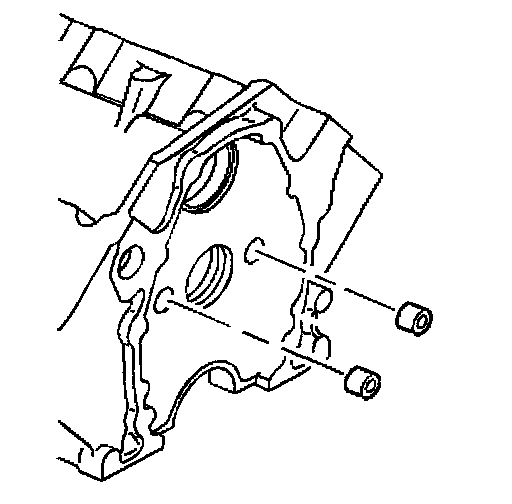

2. Install the remaining oil gallery plugs using GM P/N 12345493 threadlocker or equivalent.
