88. Water Pump Installation

^ Tools Required
- J 36660 Torque Angle Meter

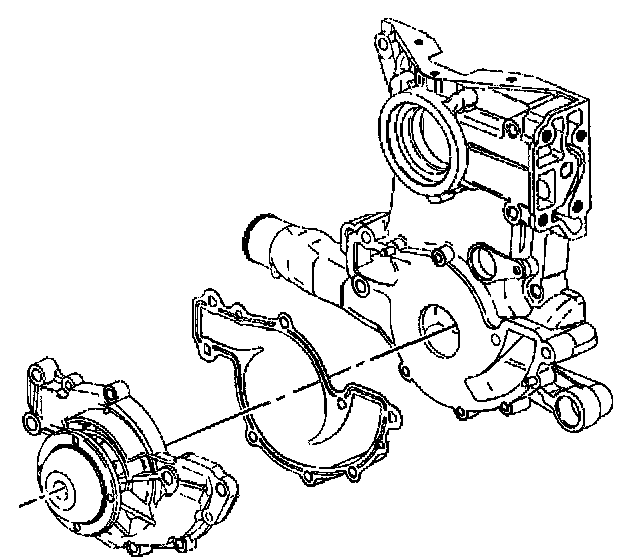

1. Install the water pump gasket.
2. Install the water pump.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the water pump bolts.
^ Tighten the water pump bolts to 15 Nm (111 ft. lbs.). Use J 36660 to tighten the bolt an additional 80 degrees.

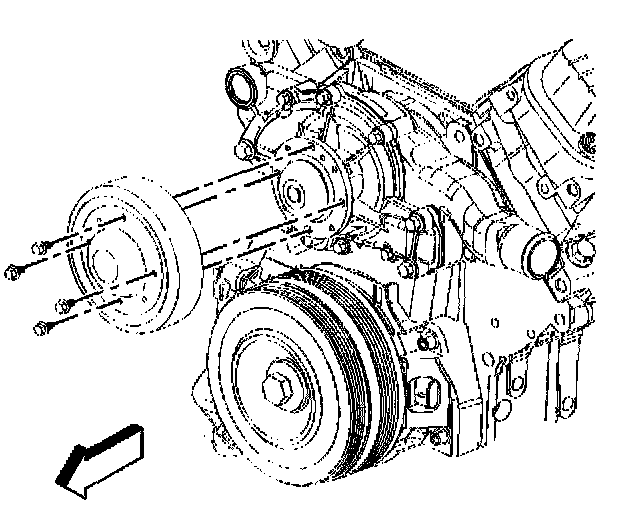

4. Install the water pump pulley.





5. Install the water pump pulley bolts.
^ Tighten the water pump pulley bolts to 13 Nm (116 inch lbs.).
