93. Engine Flywheel Installation

^ Tools Required
- J 36660 Torque Angle Meter

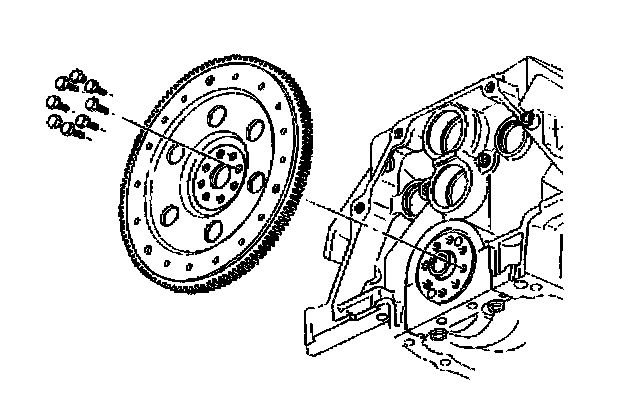

1. Install the flywheel.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the new flywheel bolts.
^ Tighten the bolts to 15 Nm (11 ft. lbs.). Use the J 36660 to tighten the bolts an additional 50 degrees.
