Locations
>>
Connector Locations
>>
Connectors By Component Name
>>

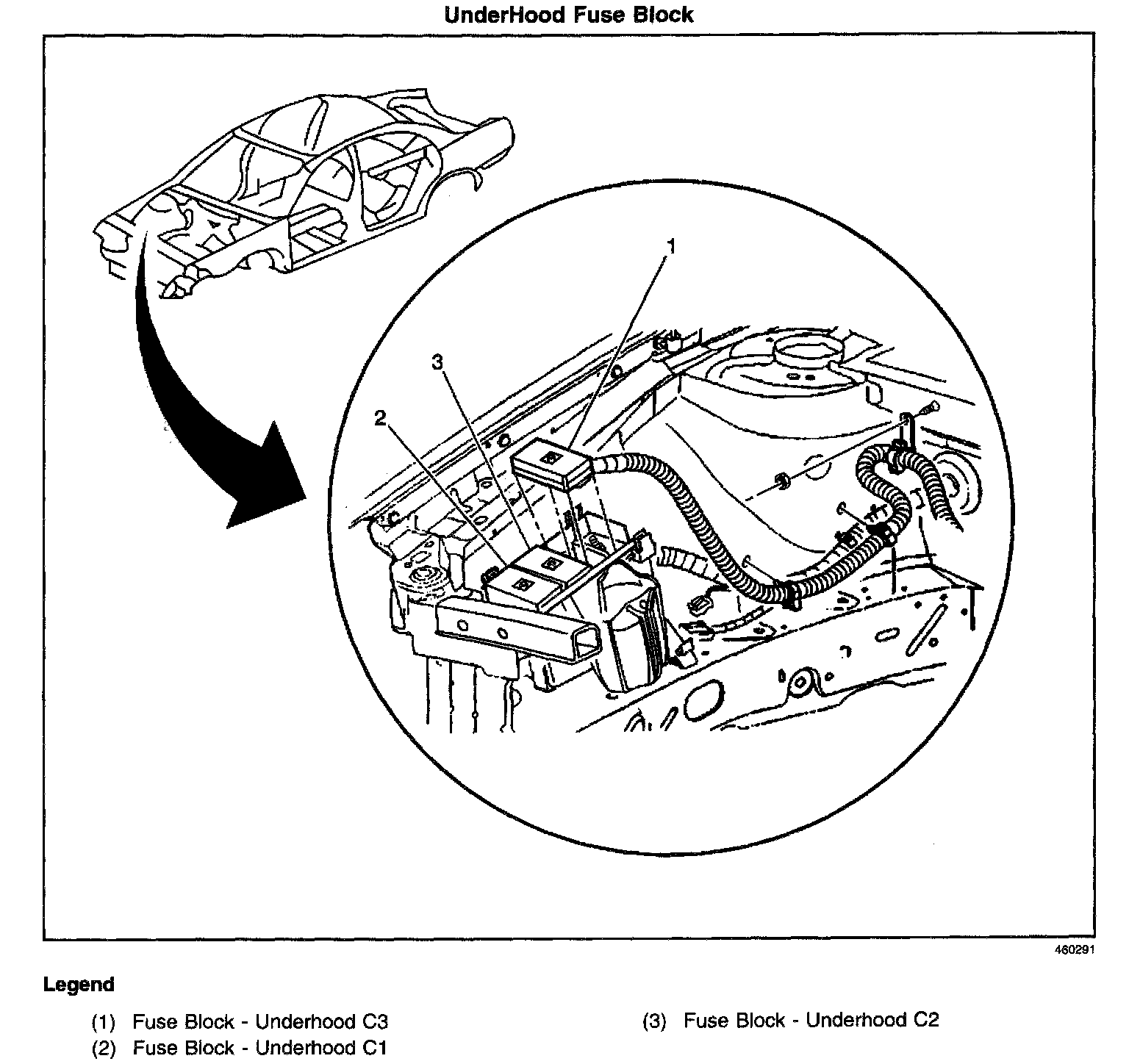

Fuse Block - Underhood, C1, C2 and C3
Fuse Block - Underhood, C1, C2 and C3

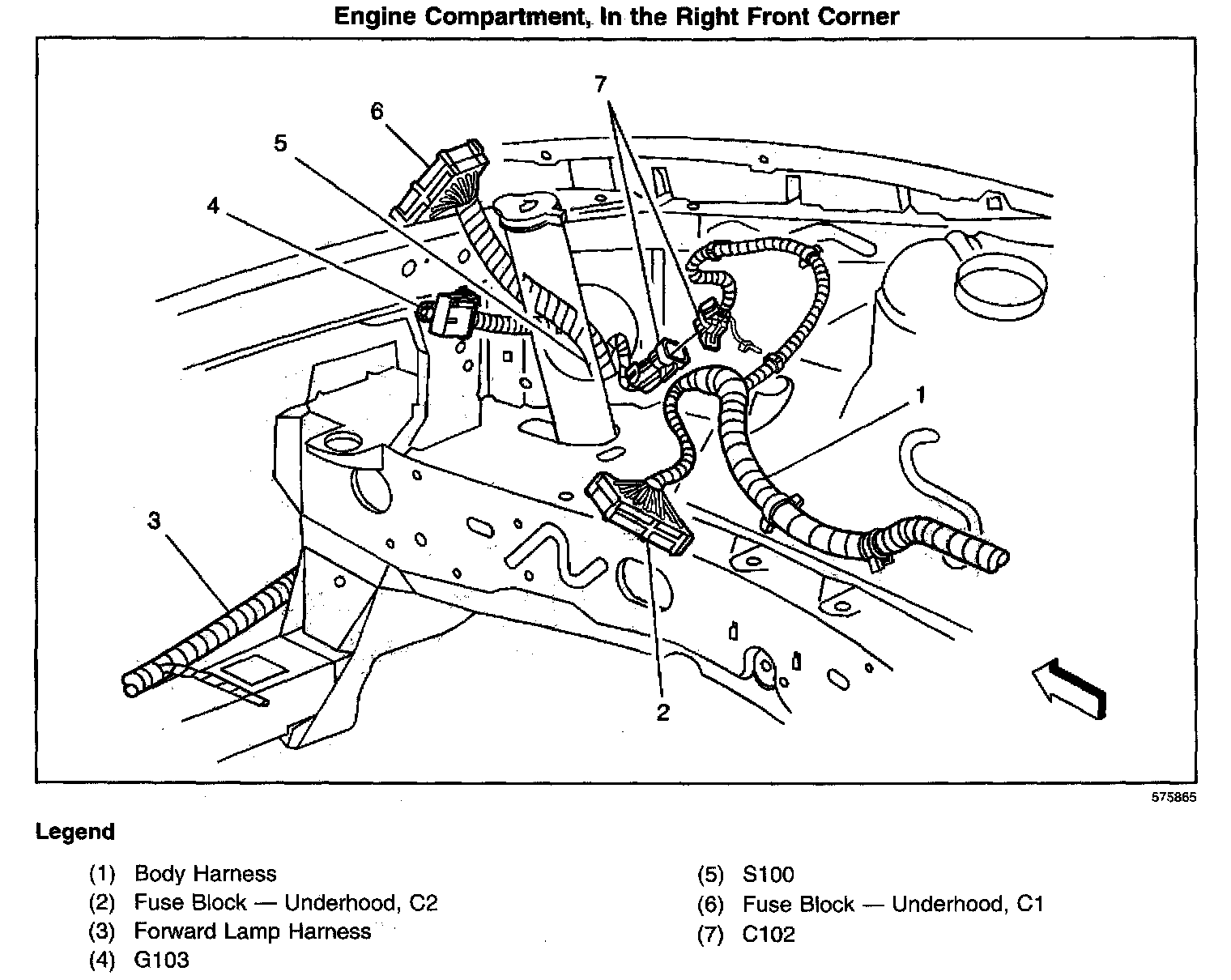

Locations View:
Locations View:
