Wiring Harness Replacement - Front Door

Wiring Harness Replacement - Door (Front)

Removal Procedure





1. Disconnect the negative battery cable.
2. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door (Aztek) (Trim Panel Replacement - Side Front Door (Aztek))Trim Panel Replacement - Side Front Door (Rendezvous) (Trim Panel Replacement - Side Front Door (Rendezvous)) .
3. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door. Water Deflector Replacement - Front Door
4. Remove the front door rubber conduit form the front door. Refer to Rubber Conduit Replacement - Front Door (Rubber Conduit Replacement - Front Door) .

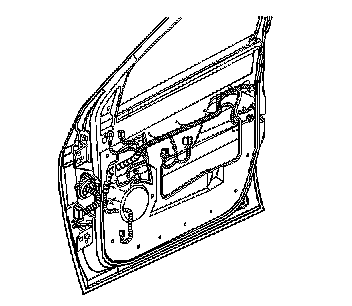

5. Disconnect the front door wiring harness connectors from all the accessories.
6. Disconnect the front door wiring harness rosebbud retainers from the inner front door panel.
7. Remove the front door wiring harness from the front door.



Installation Procedure





1. Install the front door wiring harness to the front door.
2. Connect the front door wiring harness rosebbud retainers to the inner front door panel.
3. Connect the front door wiring harness connectors to all the accessories.
4. Install the front door rubber conduit form the front door.
5. Install the front door water deflector.
6. Install the front door trim panel.
7. Connect the negative battery cable.
