Home
>>
Buick
>>
2002
>>
Rendezvous V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Door Actuator / Motor, HVAC
>>
HVAC System - Manual
>>
Recirculation Actuator
Recirculation Actuator

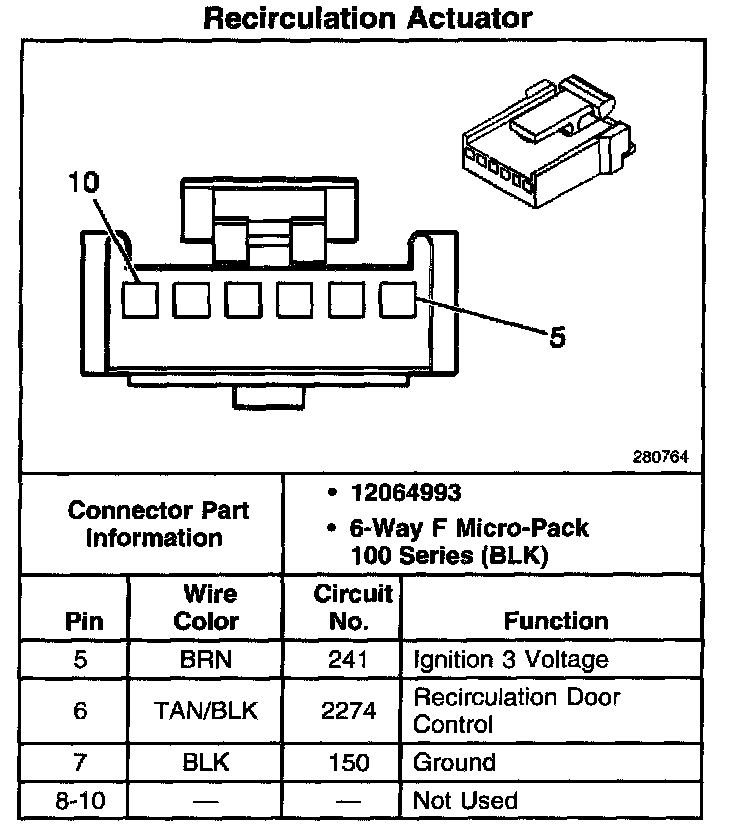

Recirculation Actuator:
