Fuse Block-Underhood BATT 1 Fuse And Fuse Block-Center Console BCML, HZD FL, HUD, RADIO, RD AMP And IP MDL Fuses

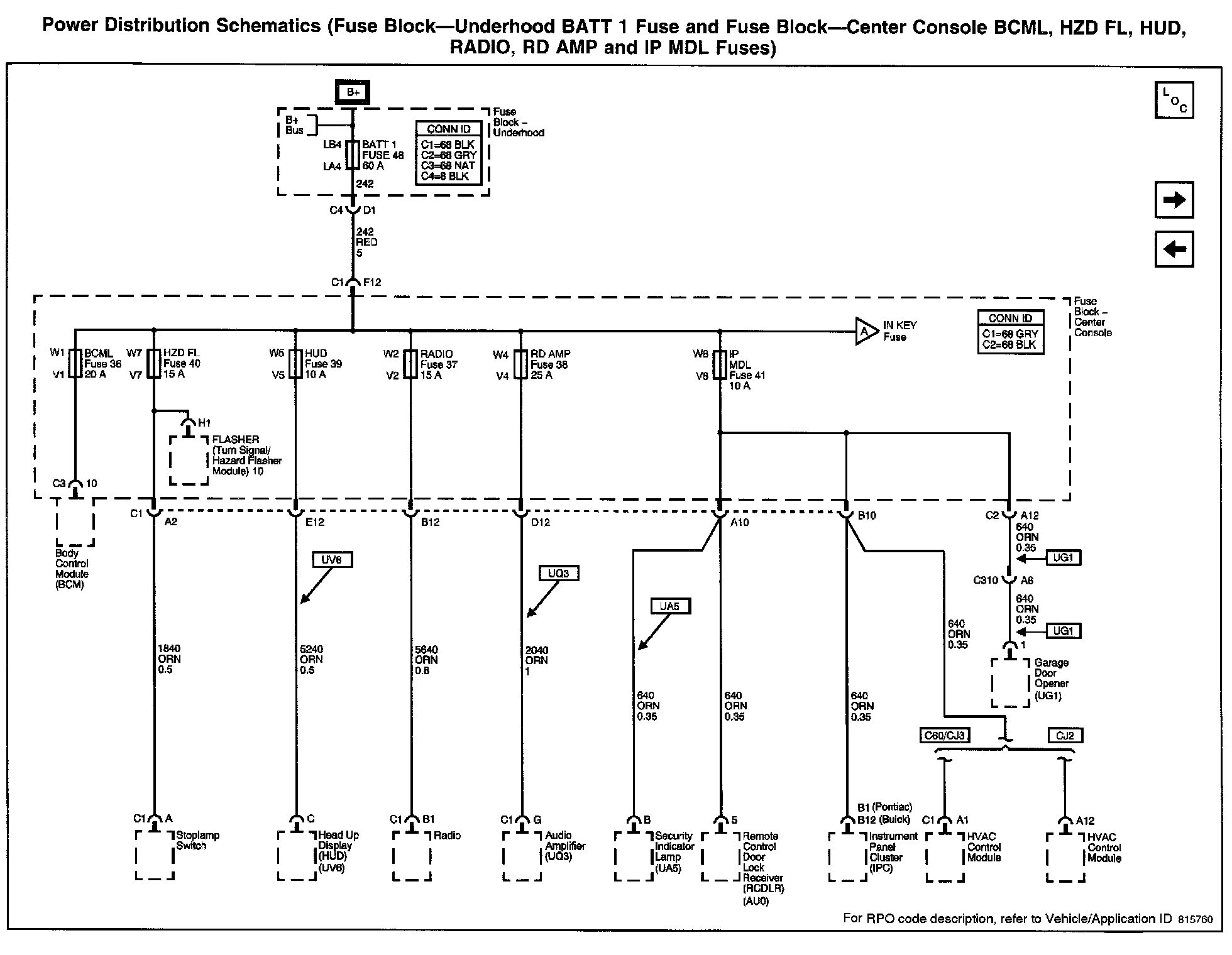

Power Distribution Schematics: Fuse Block-Underhood BATT 1 Fuse And Fuse Block-Center Console BCML, HZD FL, HUD, RADIO, RD AMP And IP MDL Fuses:
