EVAP Canister

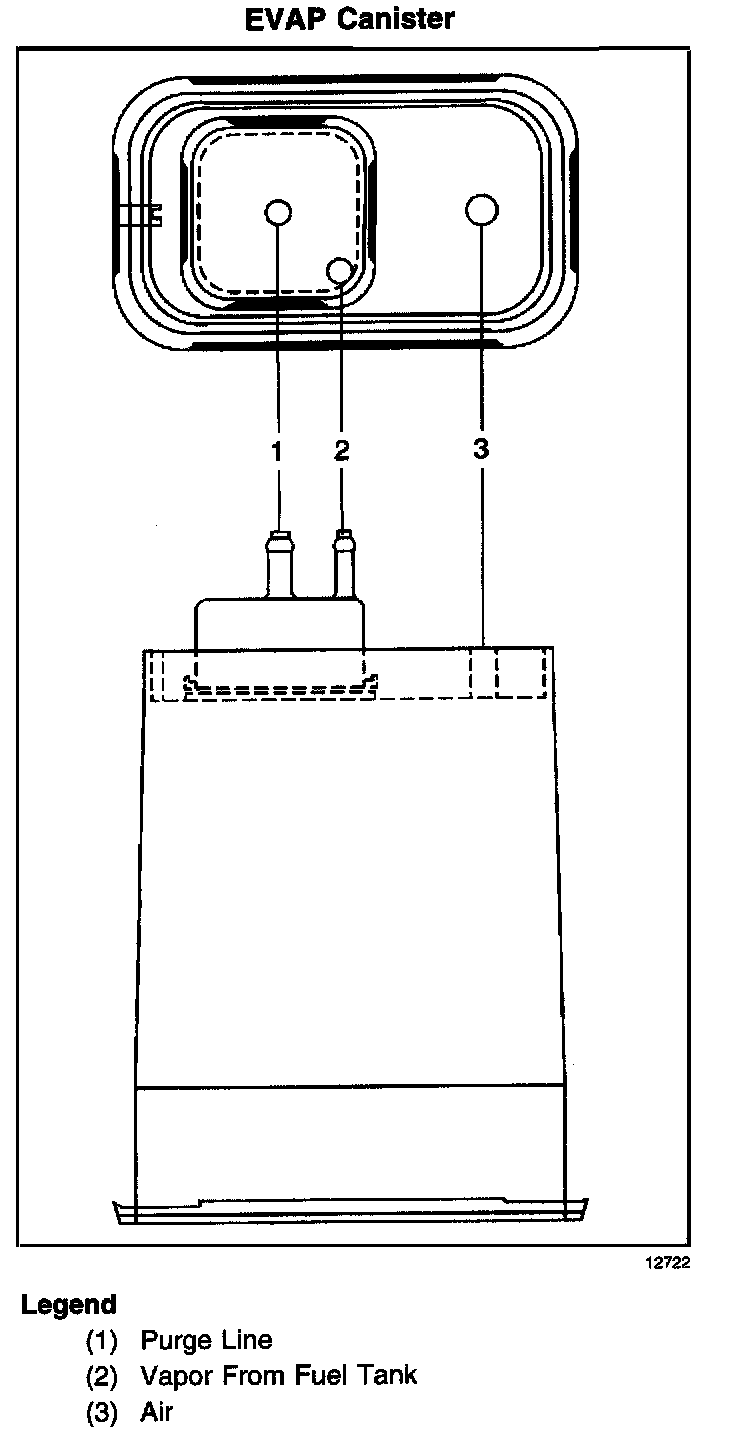

EVAP Canister:

The EVAP canister, filled with charcoal pellets, stores the fuel vapors from the fuel tank. The engine vacuum purges the EVAP canister during normal driving.

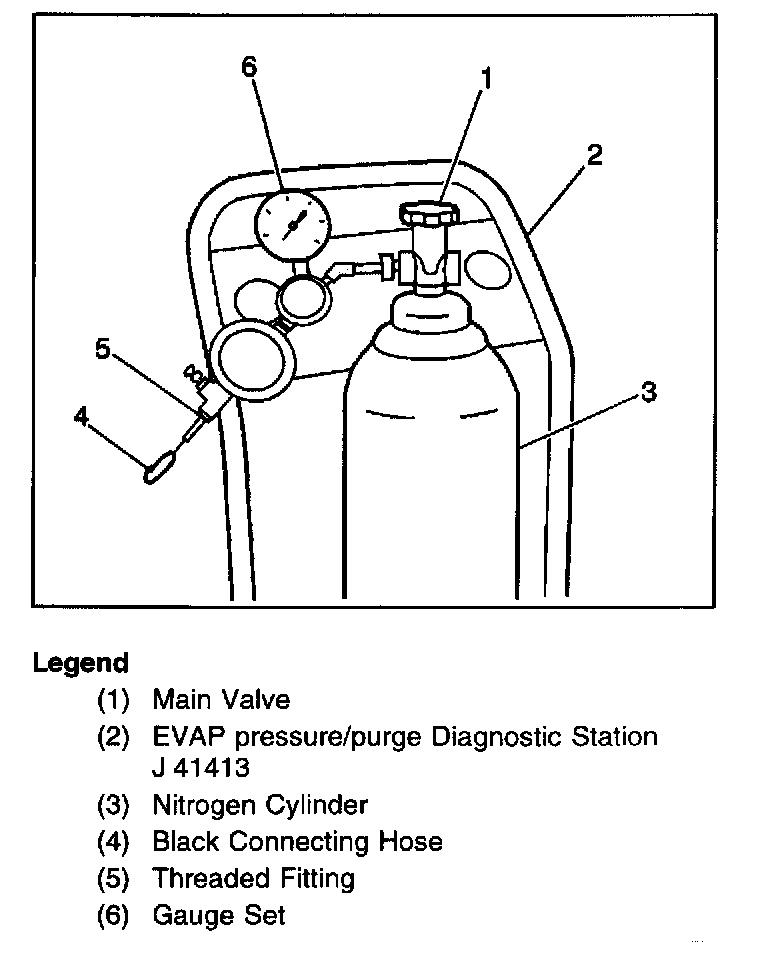

EVAP Pressure/purge Diagnostic Station:

NOTE: Use the EVAP Pressure/Purge Diagnostic Station J 41413 in order to provide a clean, dry, low pressure gas source. Do not substitute any other pressurized gas source. Damage may result to the EVAP system.
