Mirror Replacement - Remote

Mirror Replacement - Remote

Removal Procedure

1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door (Service and Repair) .




2. Disconnect the mirror remote cable from the front door trim panel.
3. Remove the mirror reinforcement cover.

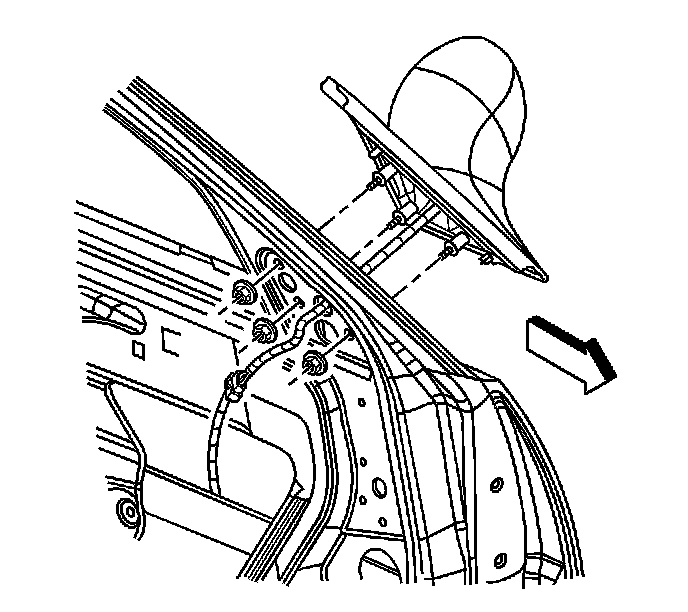

4. Remove the mirror nuts.
5. Remove the mirror from the front door.



Installation Procedure





1. Install the mirror remote cable through the opening in the front door.
2. Position the mirror to the front door.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the mirror nuts.

Tighten the nuts to 10 N.m (89 lb in).

4. Install the mirror reinforcement cover.
5. Connect the mirror remote cable to the front door trim panel.
6. Install the front door trim panel. Refer to Trim Panel Replacement - Side Front Door (Service and Repair) .
