16. Intake Manifold Removal - Lower

Intake Manifold Removal - Lower





1. Remove the fuel feed and return pipe retaining clip bolt.
2. Remove the fuel feed and return pipe retaining clip.

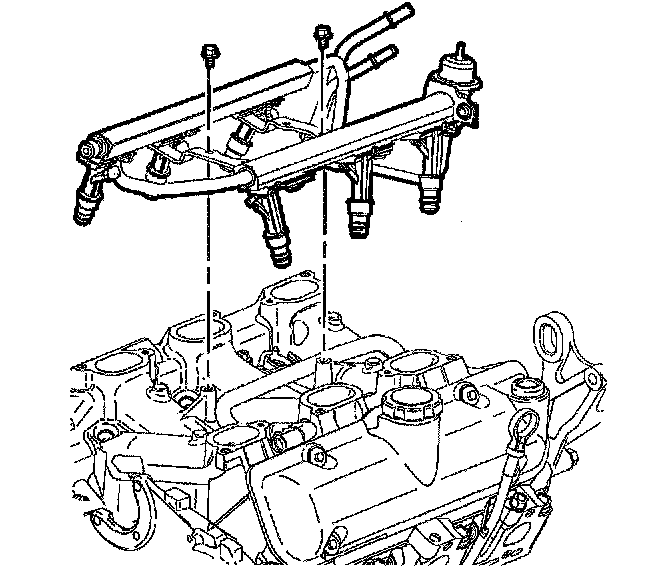

3. Remove the fuel injector rail bolts.
4. Remove the fuel injector rail assembly.





5. Remove the heater inlet pipe nut.
6. Remove the heater inlet pipe.

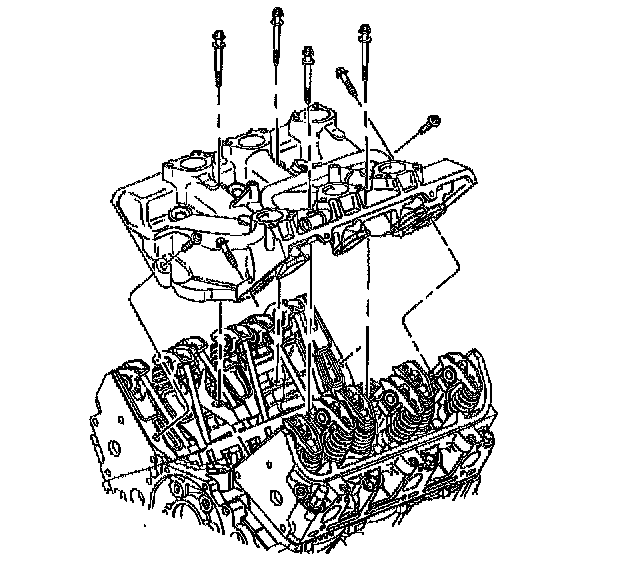

7. Remove the lower intake manifold bolts.
8. Remove the lower intake manifold.
