Exhaust Manifold Replacement - Left
Exhaust Manifold Replacement - LeftRemoval Procedure
1. Disconnect the negative battery cable.
2. Remove the air cleaner intake duct.
3. Remove the right engine mount strut bracket.
4. Remove the thermostat bypass pipe.

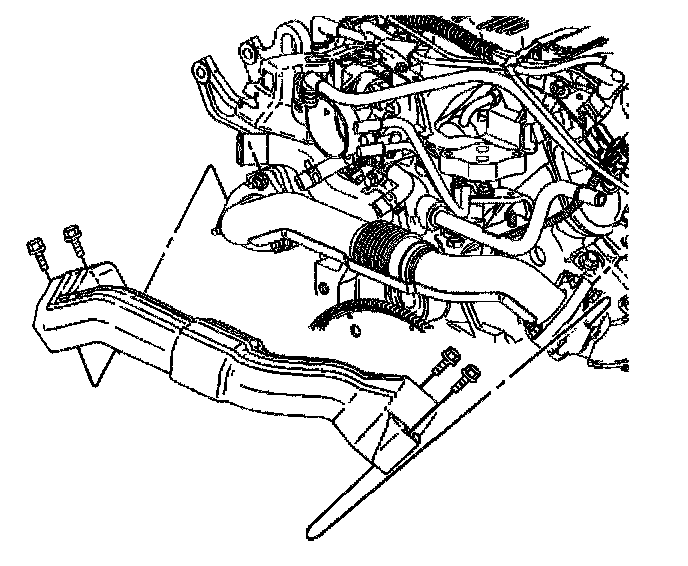

5. Remove the exhaust crossover pipe heat shield bolts.
6. Remove the exhaust crossover pipe heat shield.
7. Remove the exhaust crossover pipe nuts from the left exhaust manifold.

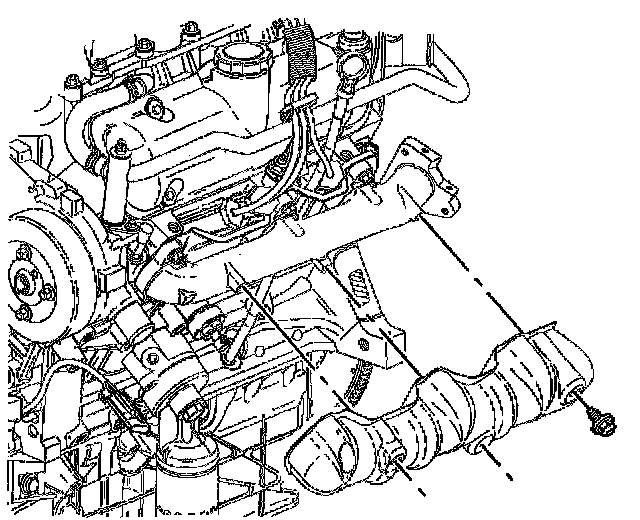

8. Remove the left exhaust manifold heat shield bolts.
9. Remove the left exhaust manifold heat shield.

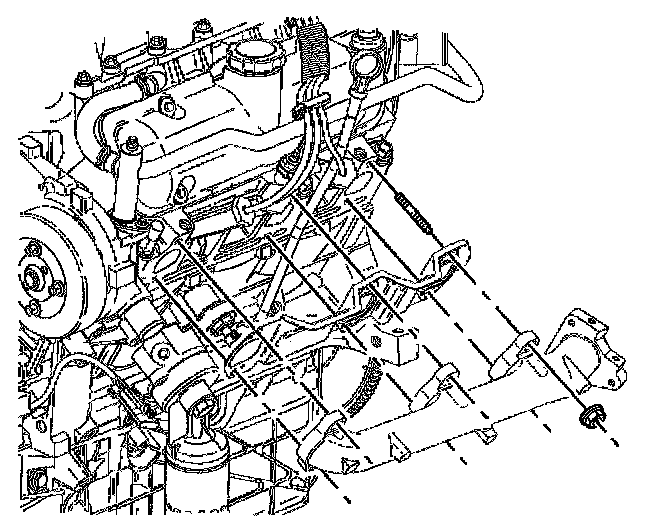

10. Remove the left exhaust manifold nuts.
11. Remove the left exhaust manifold.
12. Remove the left exhaust manifold gasket.
13. Clean and inspect the left exhaust manifold.
Installation Procedure
1. Install the left exhaust manifold gasket.
2. Install the left exhaust manifold.
Notice: Refer to Fastener Notice in Service Precautions.

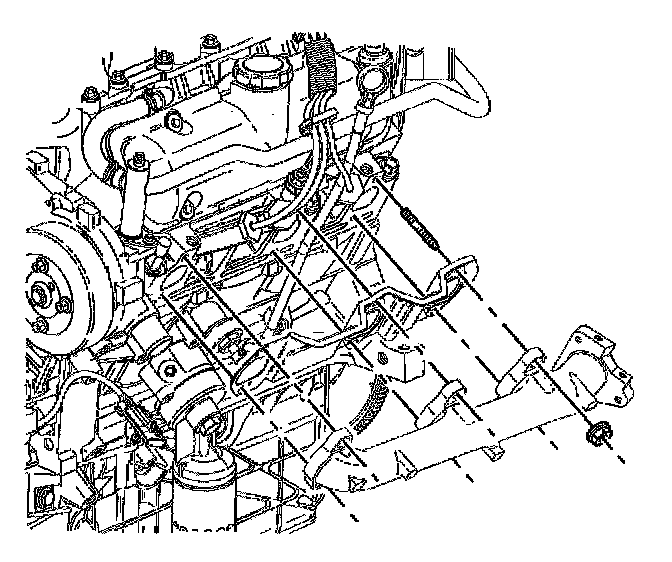

3. Install the left exhaust manifold nuts.
^ Tighten the nuts to 16 Nm (12 ft. lbs.).

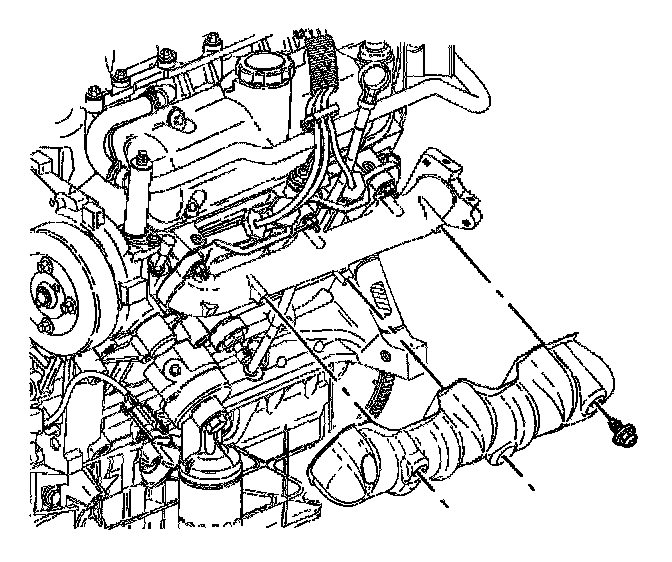

4. Install the left exhaust manifold heat shield.
5. Install the left exhaust manifold heat shield bolts.
^ Tighten the bolts to 10 Nm (89 inch lbs.).

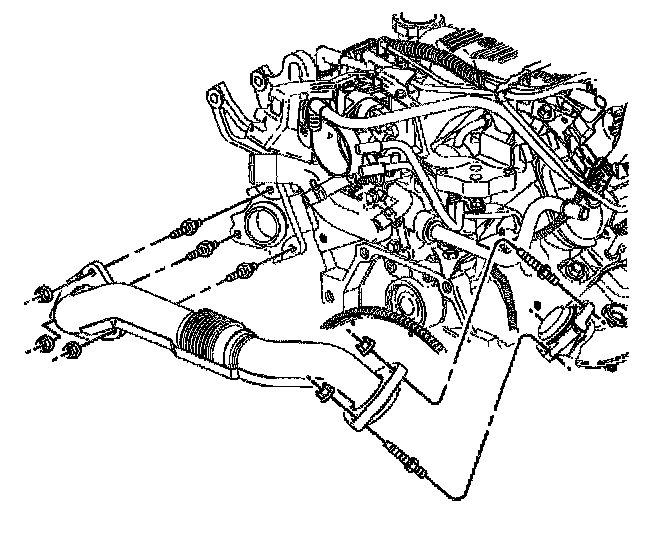

6. Install the exhaust crossover pipe nuts to the left exhaust manifold.
^ Tighten the nuts to 25 Nm (18 ft. lbs.).

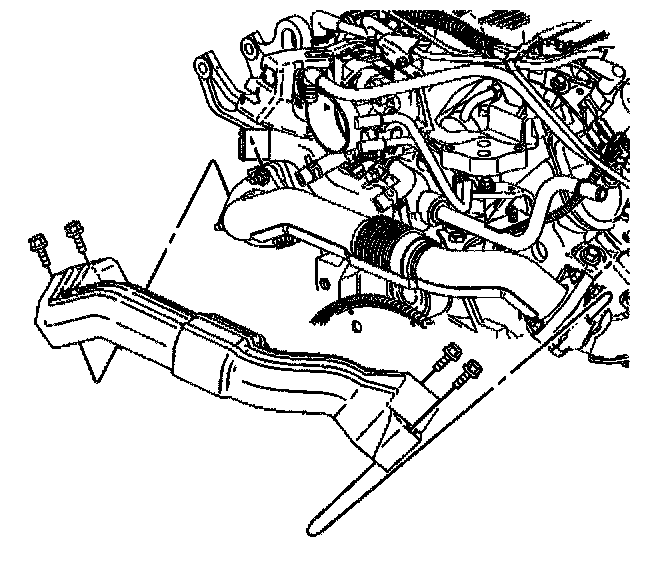

7. Install the exhaust crossover pipe heat shield.
8. Install the exhaust crossover pipe heat shield bolts.
^ Tighten the bolts to 10 Nm (89 inch lbs.).
9. Install the thermostat bypass pipe.
10. Install the right engine mount strut bracket.
11. Install the air cleaner intake duct.
12. Connect the negative battery cable.
