40. Torque Converter Oil Seal Assemble

Torque Converter Oil Seal Assemble

^ Tools Required
- J 28540-A Converter Seal Installer

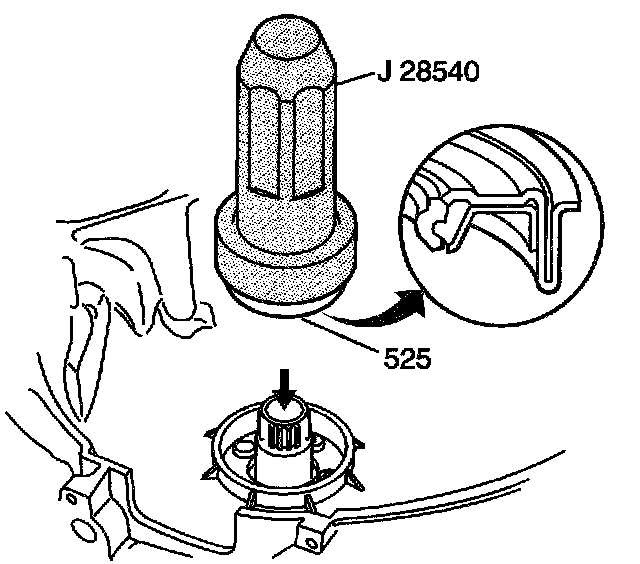

Notice: Install the seal onto the tool before installing into the case to prevent damage to the seal. Use J 28540-A and a mallet in order to install the torque converter oil seal (525).
