Vehicle Identification (VIN) Number

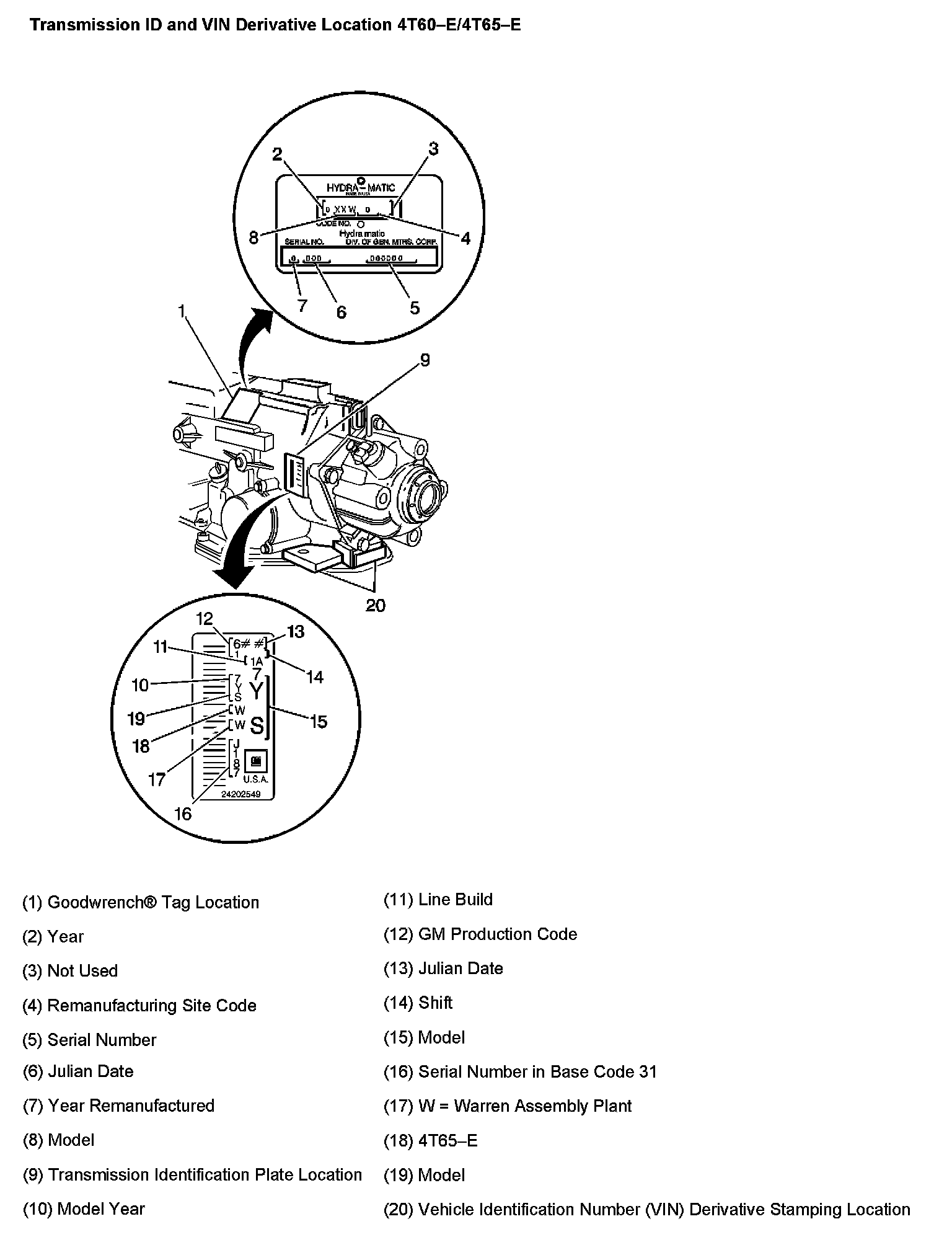

Transmission ID And VIN Derivative Location 4T60-E/4T65-E:




All automatic transmissions have a metal identification (ID) nameplate (9) attached to the case exterior.

Transmission VIN Location 4T65-E,M15/MN3/MN7:




The primary (1) and secondary (2) Manual Tooling VIN Derivative Locations are on the casting of the transmission housing.

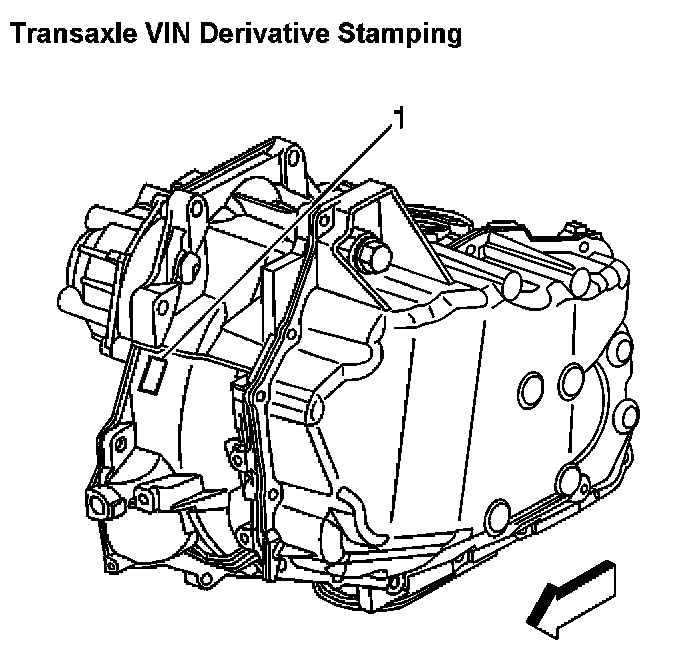

Transaxle VIN Derivative Stamping:




The location for the Semi-Automatic VIN derivative (1) is on the transmission housing.
