Reflector Replacement - Front Door Warning

Reflector Replacement - Front Door Warning

Removal Procedure

1. Open the door.

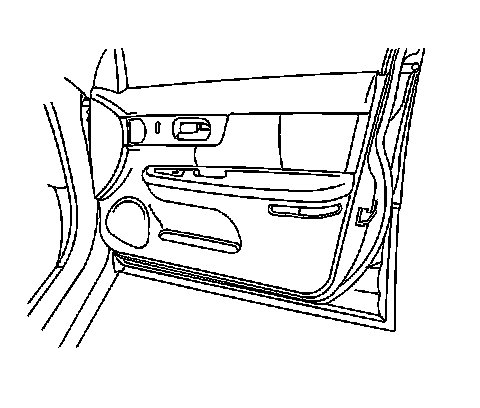

2. Remove the front door trim. Refer to Trim Panel Replacement - Side Front Door (Service and Repair) .




3. From inside the trim panel, press the reflector retaining tabs together and push the reflector out.
4. Remove the warning reflector from the trim panel.



Installation Procedure





1. Press the warning reflector back into the trim panel.
2. Close the door.
