Rubber Conduit Replacement - Rear Door
Rubber Conduit Replacement - Rear Door

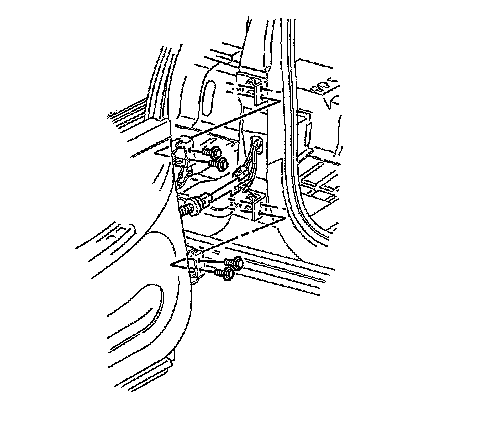

Removal Procedure
1. Remove the conduit from the center pillar.
2. Remove the door wiring harness electrical connector.
3. Remove the conduit from the door.
Installation Procedure
1. Install the conduit to the door.
2. Install the door wiring harness electrical connector.
3. Install the conduit to the center pillar.
