Rearview Mirror Replacement

Rearview Mirror Replacement

Removal Procedure

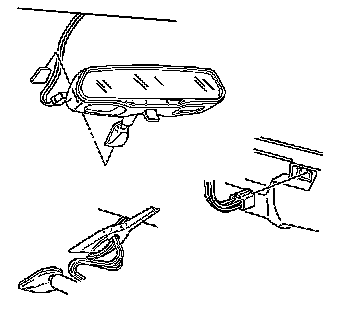

1. Remove the wire harness cover from the lighted rearview mirror, if equipped.




2. Use a small flat-bladed tool in order to remove the rearview mirror from the rearview mirror support.




3. Disconnect the electrical connector from the lighted rearview mirror, if equipped.



Installation Procedure





1. Connect the electrical connector from the lighted rearview mirror, if equipped.

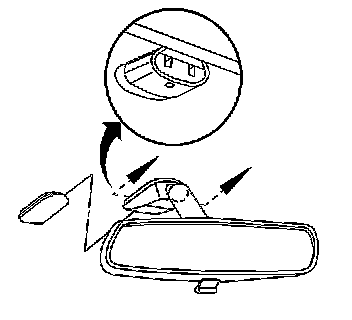

2. Snap the rearview mirror into the rearview mirror support. Ensure that the mirror is fully seated.
3. Install the wire harness cover to the lighted rearview mirror, if equipped.
