Weatherstrip Replacement - Rear Door Opening

Weatherstrip Replacement - Rear Door Opening

Removal Procedure

1. Remove the rear carpet retainers. Refer to Carpet Retainer Replacement - Rear (Carpet Retainer Replacement - Rear) in Interior Trim.

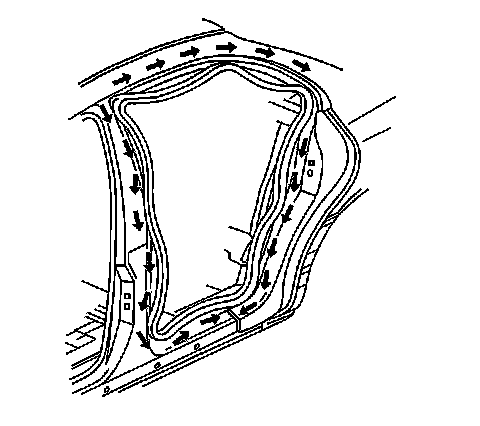

2. Pull the lower edges of the weatherstrip and retainers away from the door.
3. Pull the upper edges of the weatherstrip from the door.
4. Remove the weatherstrip from the door.



Installation Procedure





1. Install the weatherstrip on the door.
2. Push the upper edges of the weatherstrip onto the door.
3. Push and seat the lower edges of the weatherstrip and retainers onto the door.
4. Install the rear carpet retainers. Refer to Carpet Retainer Replacement - Rear (Carpet Retainer Replacement - Rear) in Interior Trim.
