Buick
>>
2003
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

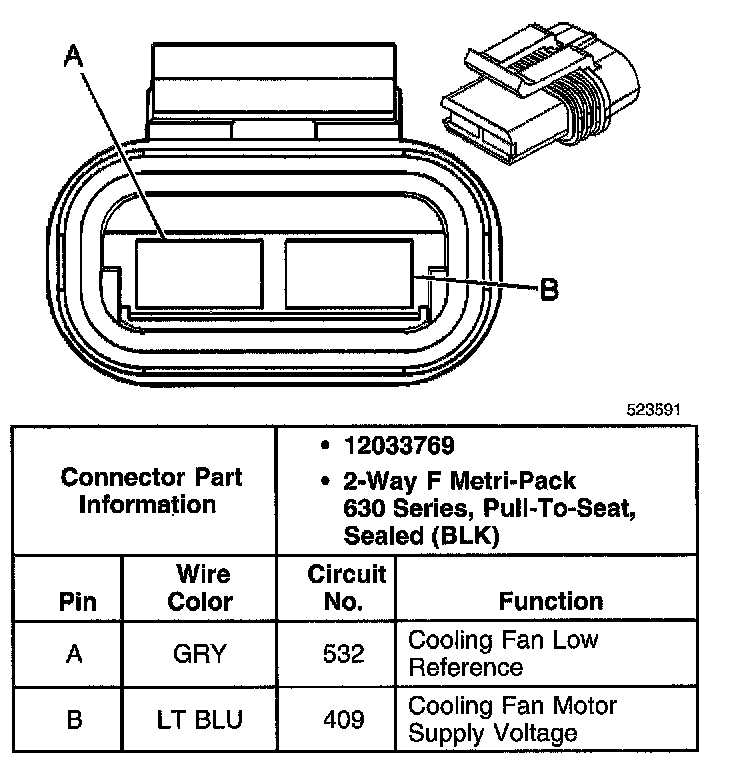

Radiator Cooling Fan
Radiator Cooling Fan
Cooling System
Connector End Views

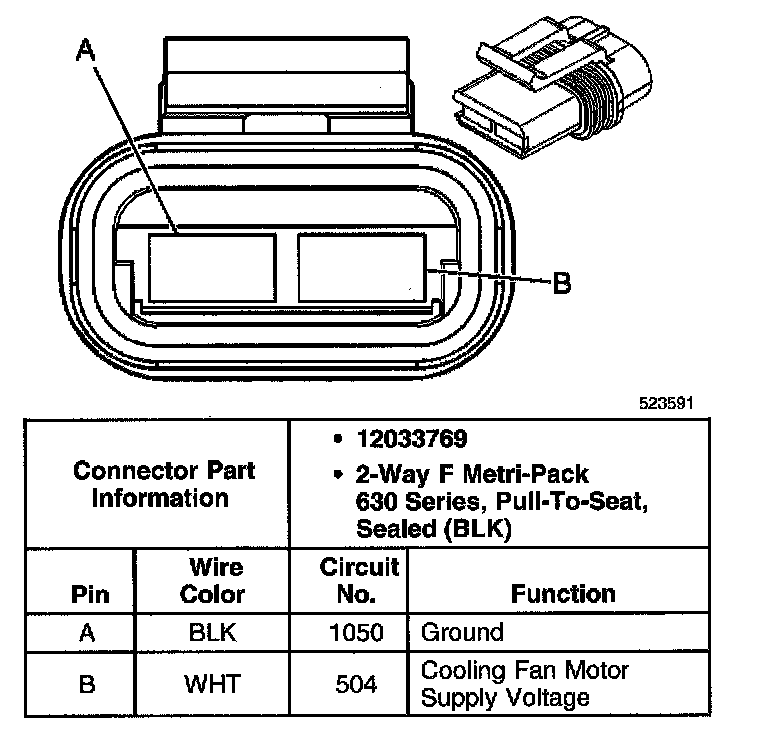

Cooling Fan-Left
Cooling System
Connector End Views
