Operation CHARM: Car repair manuals for everyone.

Home >> Buick >> 2003 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo

Radio/Stereo

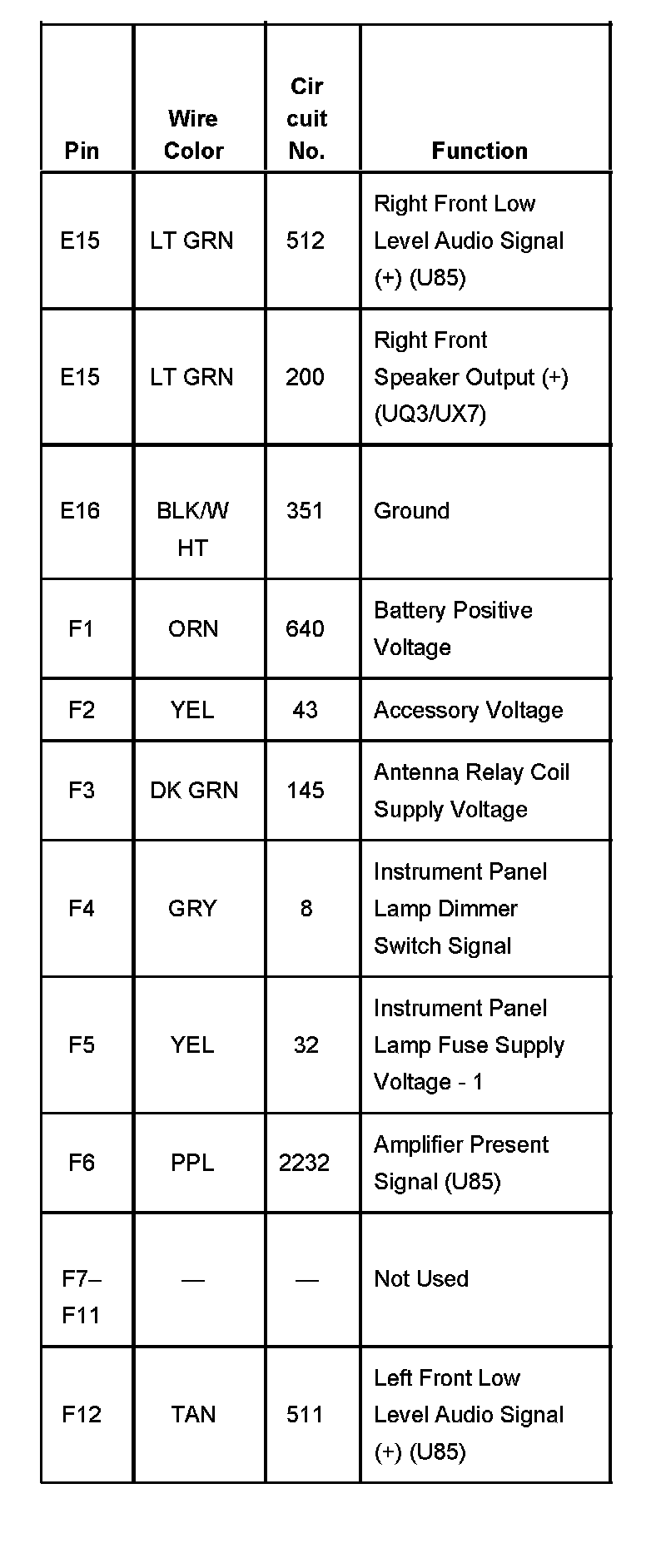

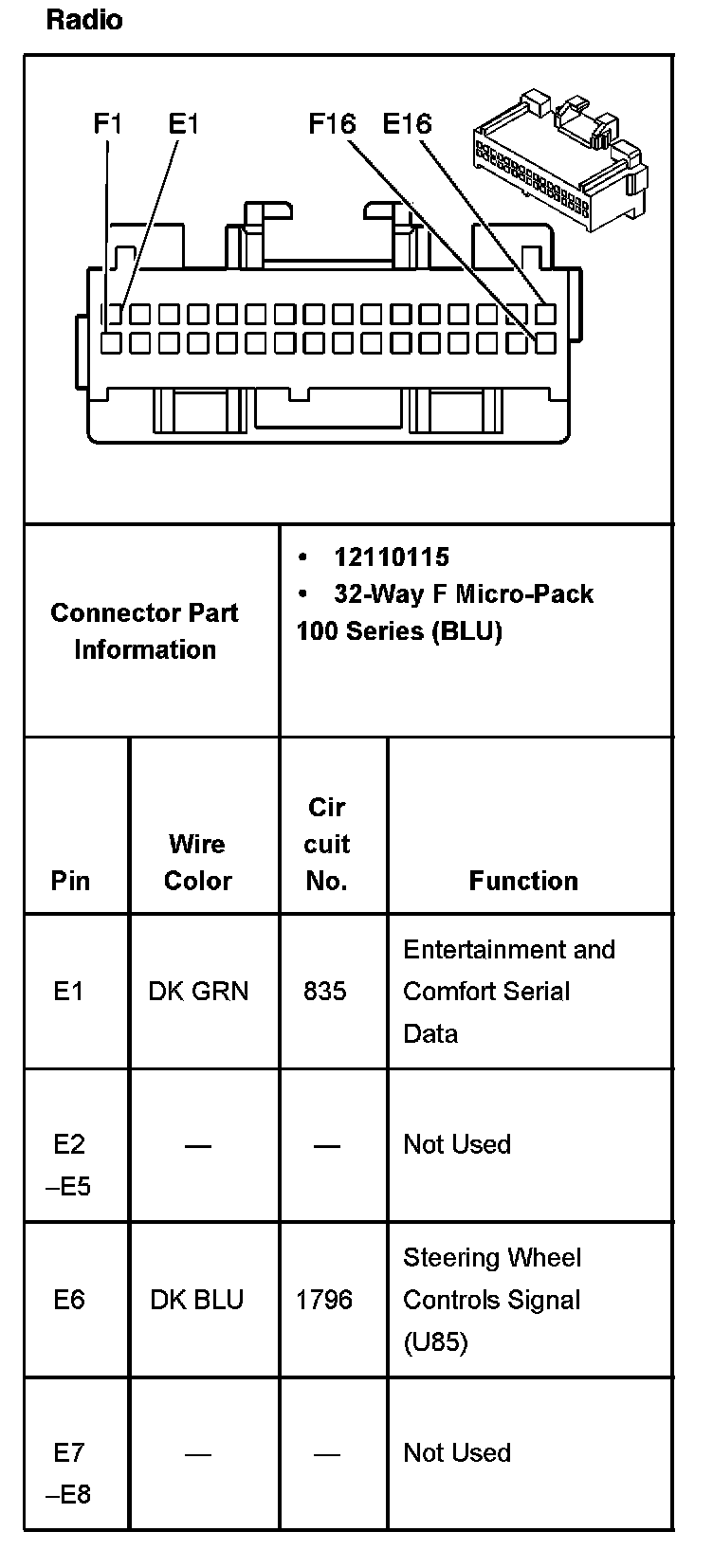

Radio Part 1:

Radio Part 2:

Radio Part 3:

Radio Part 4:
