72. Crankshaft Rear Oil Seal and Housing Installation

Crankshaft Rear Oil Seal and Housing Installation

^ Tools Required
- J 36660-A Torque Angle Meter
- J 41349 Rear Cover Alignment Tool





1. Clean the gasket from the crankshaft rear oil seal housing.
2. Clean the crankshaft rear oil seal housing.
3. Inspect the crankshaft rear oil seal housing for damage.

Notice: Do not use a sealant or adhesive when installing this component. Use of a sealant or adhesive can cause improper sealing. A component that is not sealed properly can leak leading to extensive engine damage.

4. Install the crankshaft rear oil seal housing gasket over the bolts for alignment.

Important: The plastic inserts in the crankshaft rear oil seal housing are used to aid assembly only. The inserts are not required for service.

5. Install the crankshaft rear oil seal housing. Hand tighten the crankshaft rear oil seal housing bolts.

Notice: Sealability of the rear main oil seal depends on the correct alignment of the rear main oil seal housing and the oil pan. Incorrect alignment may cause oil leaks.

6. Apply engine oil to both sides of J 41349.

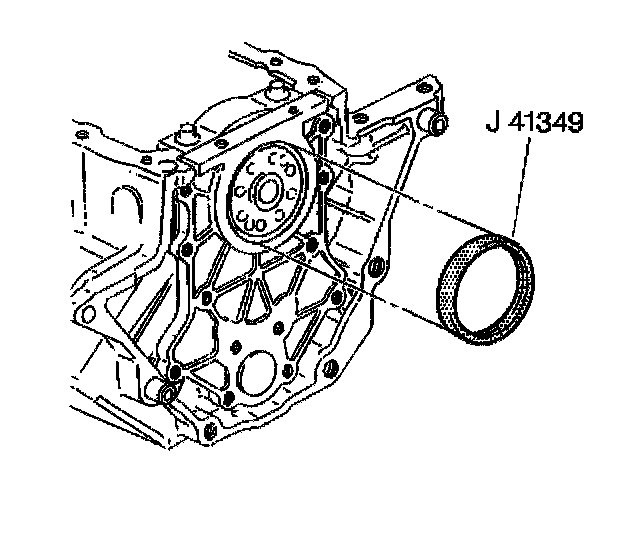

7. Install J 41349 over the crankshaft. Twist the tool to aid in sliding the tool over the crankshaft.
8. Place a straight edge on the engine block oil pan flange and the crankshaft rear oil seal housing flange. Use a feeler gage to ensure there is no more than 0.10 mm (0.004 inch) step on each side. Rotate the crankshaft rear oil seal housing to make the step equal on each side. Replace the crankshaft rear oil seal housing if the rotation does not make the step equal.

Notice: Refer to Fastener Notice in Service Precautions.

9. Tighten the crankshaft rear oil seal housing bolts.
^ Tighten the crankshaft rear oil seal housing bolts to 15 Nm (11 ft. lbs.). Use J 36660-A to tighten the bolts an additional 50°.
10. Remove J 41349.
11. Recheck the step height on each side to ensure the crankshaft rear oil seal housing did not move. If the step height is beyond specification, reinstall the crankshaft rear oil seal housing and measure the step again. Replace the crankshaft rear oil seal housing if the clearance is still beyond specification.
