Fuel Injector Coil Test

CIRCUIT DESCRIPTION
The control module enables the appropriate fuel injector on the intake stroke for each cylinder. Ignition voltage is supplied directly to the fuel injectors. The control module controls each fuel injector by grounding the control circuit via a solid state device called a driver. A fuel injector coil winding resistance that is too high, or low, will affect engine driveability. A fuel injector control circuit DTC may not set, but a misfire may be apparent. The fuel injector coil windings are affected by temperature. The resistance of the fuel injector coil windings increases as the temperature of the fuel injector increases.

DIAGNOSTIC AIDS
- Monitoring the misfire current counters, or misfire graph, may help isolate the fuel injector that is causing the condition.
- Operating the vehicle over a wide temperature range may help isolate the fuel injector that is causing the condition.
- Perform the fuel injector coil test within the conditions of the customers concern. A fuel injector condition may only be apparent at a certain temperature, or under certain conditions.
- If the fuel injector coil test does not isolate the condition perform the fuel injector balance test. Refer to Fuel Injector Balance Test with Special Tool or Fuel Injector Balance Test with Tech 2. Component Tests and General Diagnostics

TEST DESCRIPTION

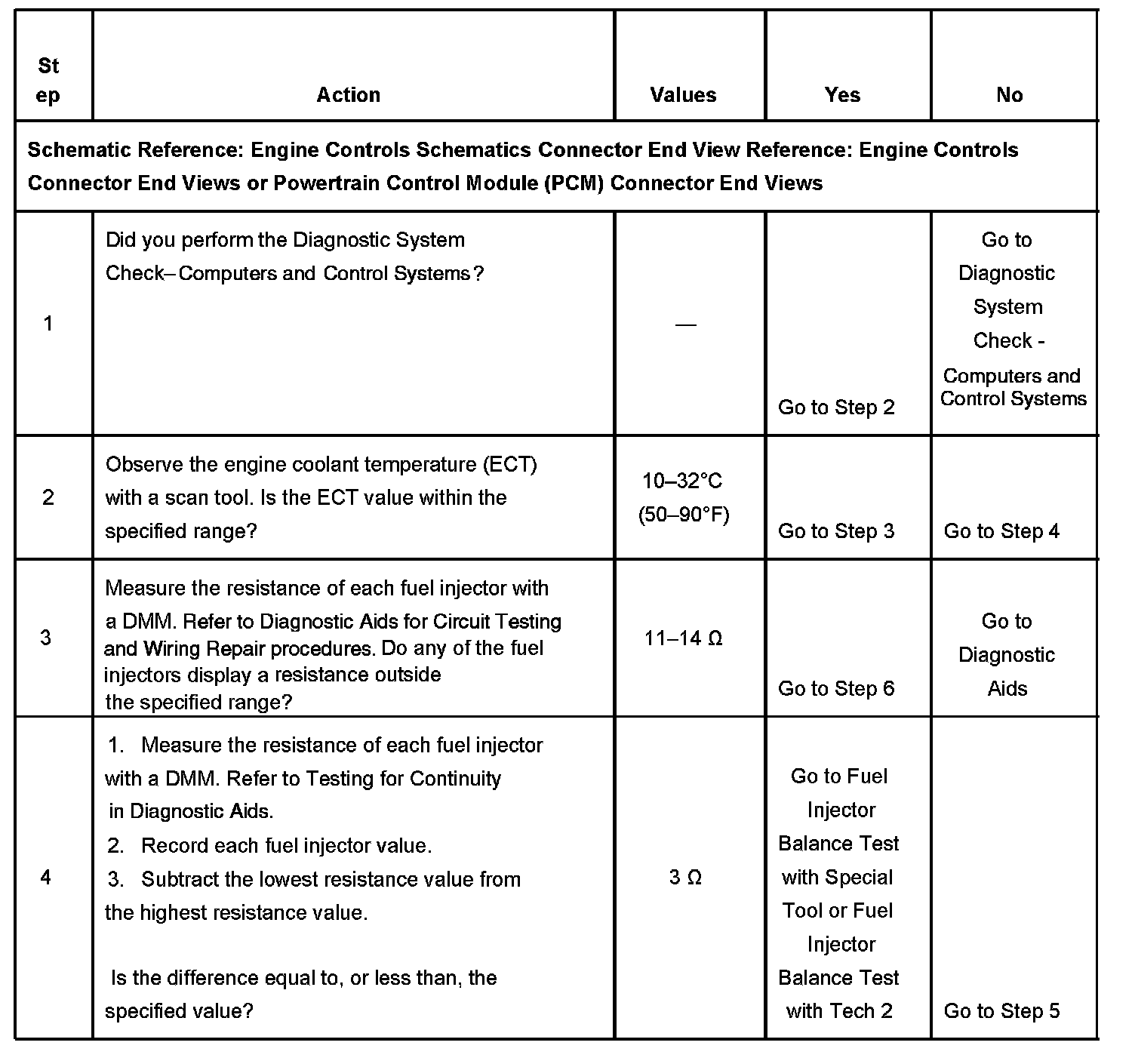

Steps 1-4:

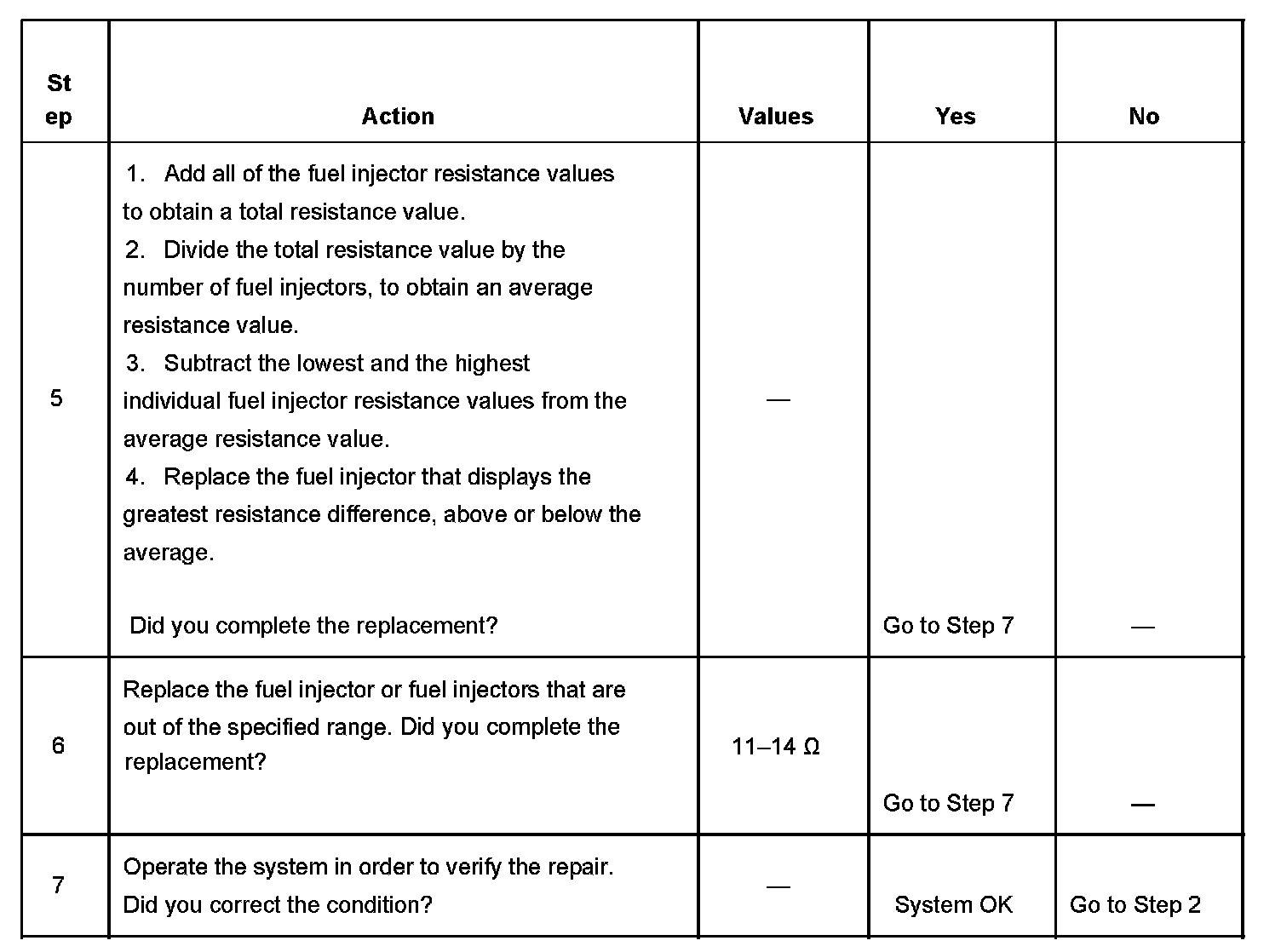

Steps 5-7:

The numbers below refer to the step numbers on the diagnostic table.
3. This step tests each fuel injector resistance within a specific temperature range. If any of the fuel injectors display a resistance outside of the specified value, replace the fuel injector.
4. This step determines if all of the fuel injectors are within 3 ohms of each other. If the highest resistance value is within 3 ohms of the lowest resistance value, then all of the fuel injector coil windings are OK.
5. This step determines which fuel injector is faulty. After subtracting the highest and lowest resistance values from the average value, replace the fuel injector that has the greatest resistance difference from the average.
