Multifunction, Turn Signal Switch

MULTIFUNCTION, TURN SIGNAL SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in Restraint Systems.

CAUTION: Refer to SIR Caution in Service Precautions.

2. Remove the upper and lower trim covers.

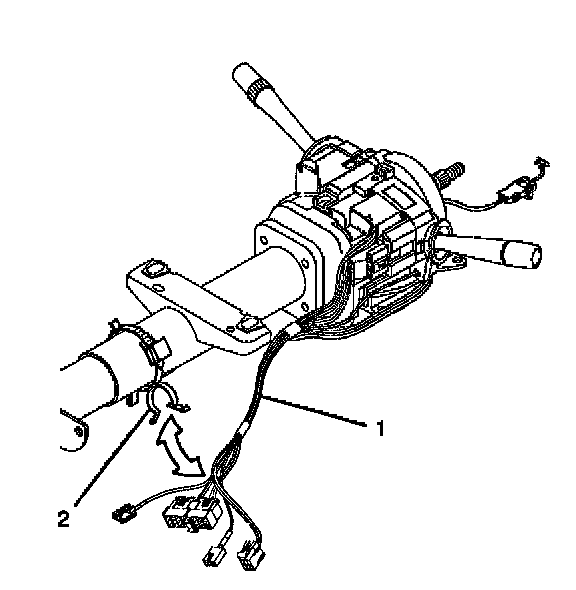

3. Remove the wire harness assembly (1) from the wire harness strap (2).

IMPORTANT: The abrasion sleeve located on the steering column wire harness assembly must be reinstalled. Make note of what connector is coming out of the abrasion sleeve for installation purposes.

4. Disconnect the turn signal and multifunction switch assembly connector from the SIR system coil connector.

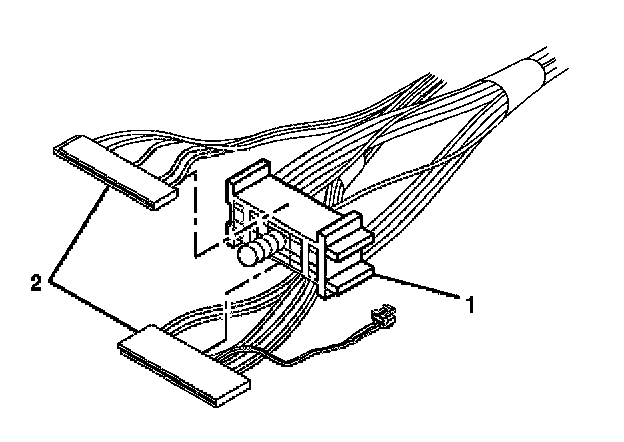

5. Slide the 2 connectors (2) of the turn signal and multifunction switch assembly out of the bulkhead connector (1).

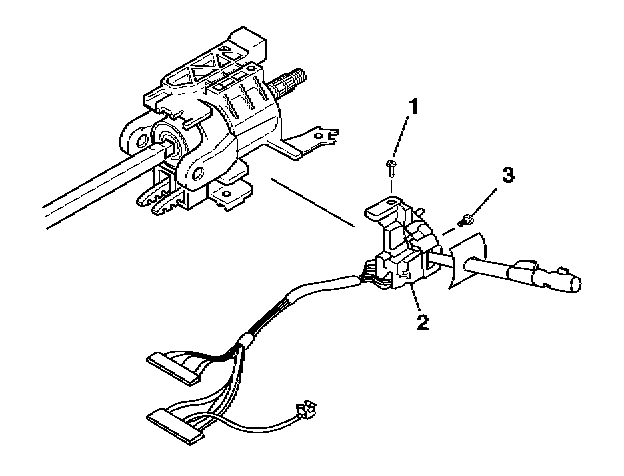

6. Remove the 2 pan head tapping screws (1) and (3) from the turn signal and multifunction switch assembly (2).
7. Remove the turn signal and multifunction switch assembly (2) from the steering column tilt head assembly.

INSTALLATION PROCEDURE




1. Install the turn signal and multifunction switch assembly (2) onto the steering column tilt head assembly.

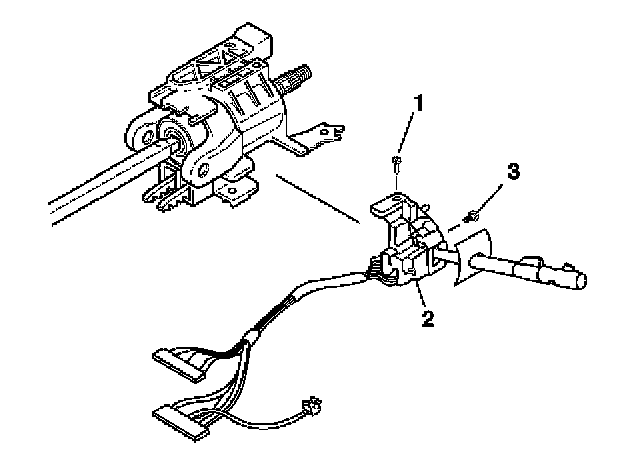

2. Screw the 2 pan head tapping screws (1) and (3) into the turn signal and multifunction assembly (2).

NOTE: Refer to Fastener Notice in Service Precautions.

IMPORTANT: Be sure that the electrical contact of the turn signal and multifunction switch assembly (2) rests on the turn signal cancel cam assembly.

Tighten
- Tighten the top pan head tapping screw (1) to 3 N.m (30 lb in).
- Tighten the side pan head tapping screw (3) to 7 N.m (62 lb in).

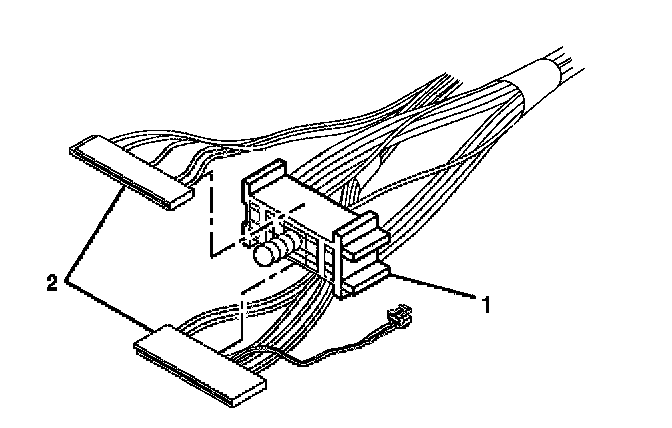

3. Slide the 2 connectors (2) of the turn signal and multifunction switch assembly into the bulkhead connector (1).




4. Connect the turn signal and multifunction switch assembly connector to the SIR coil connector.

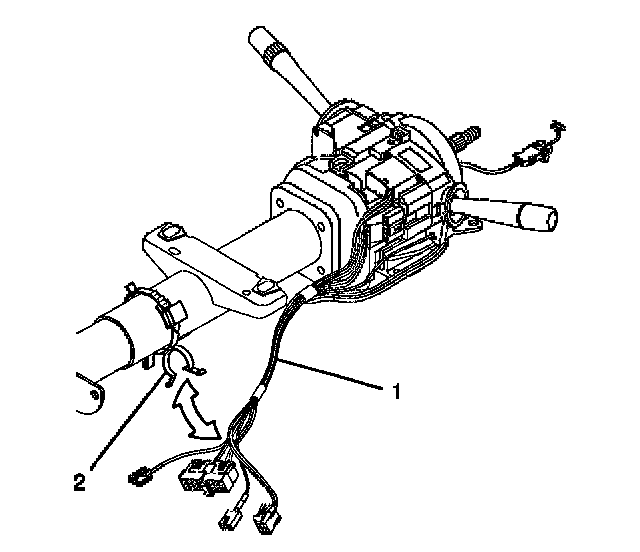

5. Install the wire harness assembly (1) into the wire harness strap (2).

IMPORTANT: The abrasion sleeve must be installed back onto the steering column wire harness assembly. The ignition lock cylinder case wires and connector must be hanging out of the middle of the abrasion sleeve.

6. Install the upper and lower trim covers.
7. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in Restraint Systems.
