49. Case Extension Assemble (FWD Only)

Case Extension Assemble (FWD Only)





1. Inspect the case extension assembly (6) for the following conditions:
^ A damaged or porous sealing surface for the case extension seal
^ A damaged or porous sealing surface for the vehicle speed sensor
^ A damaged or porous sealing surface for the right drive shaft oil seal assembly
^ Damaged bolt holes
^ A worn or damaged front differential carrier bushing (7A) or output shaft bearing assembly (713)
^ A porous or damaged case extension housing

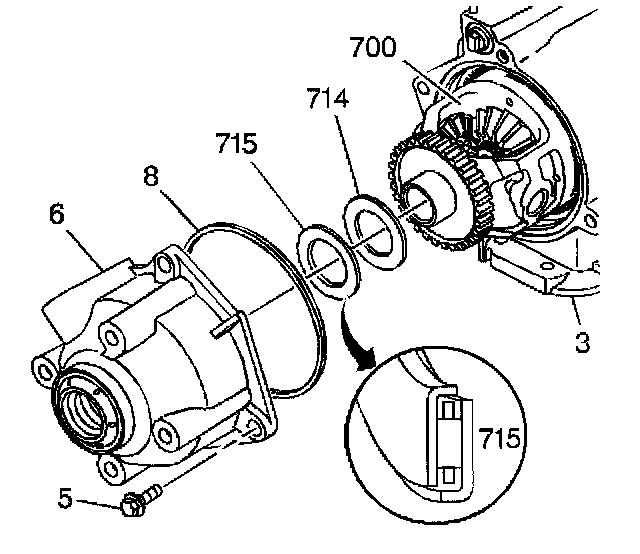

2. Install the differential carrier/case selective thrust washer (714) onto the differential/final drive carrier assembly (700).
3. Install the thrust bearing (715) onto the differential/final drive carrier assembly (700).
4. Affix the seal (8) onto the case extension (6).
5. Install the case extension assembly (6) onto the case (3).

Notice: Refer to Fastener Notice in Service Precautions.

6. Install only two case extension bolts (5) for later removal.
^ Tighten the bolts until the extension is flush to the case.
